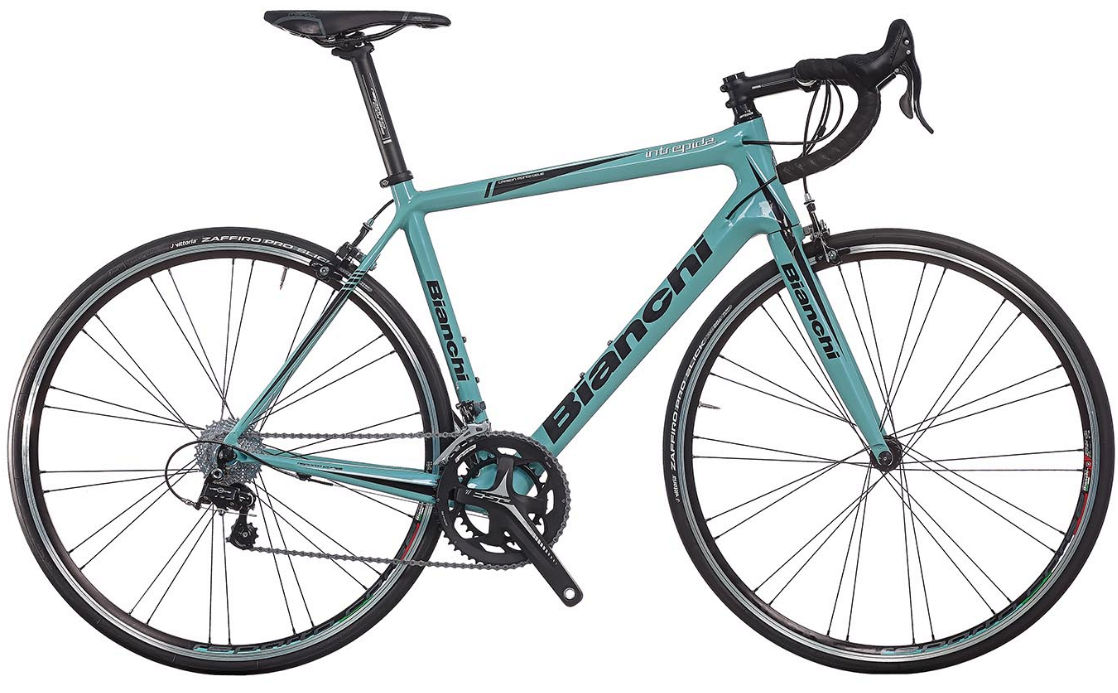

2017 Bianchi Intrepida geometry
Full frame geometry for the 2017 Bianchi Intrepida, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 518 | 364 | 74 | 70.5 | 125 | 515 | 450 | 751 | 70 | 576 | 408 | 974 |
| 51 | 548 | 366 | 73.5 | 71 | 155 | 535 | 480 | 782 | 70 | 586 | 410 | 986 |
| 54 | 566 | 387 | 72.5 | 72 | 170 | 550 | 510 | 809 | 70 | 586 | 413 | 989 |
| 57 | 593 | 372 | 72 | 73 | 195 | 565 | 540 | 839 | 70 | 587 | 415 | 992 |
| 60 | 613 | 380 | 71.5 | 73 | 215 | 585 | 570 | 865 | 70 | 599 | 417 | 1006 |
All measurements in millimetres unless marked (°) for angles.
