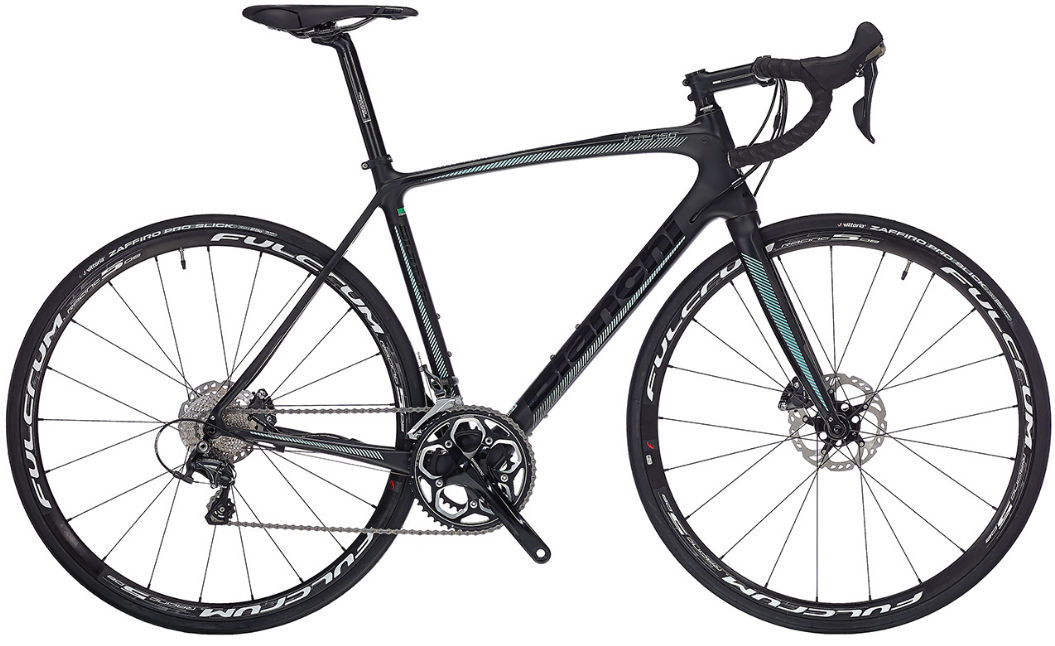

2017 Bianchi Intenso Disc geometry
Full frame geometry for the 2017 Bianchi Intenso Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 44 | 495 | 367 | 75 | 70.5 | 110 | 505 | 420 | 735 | 58 | 576 | 405 | 974 |
| 47 | 519 | 368 | 74.5 | 70.5 | 125 | 515 | 440 | 748 | 68 | 577 | 408 | 975 |
| 50 | 537 | 373 | 74.5 | 71.5 | 140 | 525 | 470 | 773 | 68 | 579 | 408 | 977 |
| 53 | 551 | 375 | 74 | 71.5 | 155 | 535 | 500 | 796 | 68 | 586 | 409 | 985 |
| 55 | 567 | 381 | 73.5 | 72 | 170 | 550 | 520 | 815 | 68 | 592 | 410 | 992 |
| 57 | 583 | 386 | 73.5 | 72.5 | 185 | 560 | 540 | 833 | 68 | 598 | 411 | 999 |
| 59 | 598 | 391 | 73 | 72.5 | 200 | 575 | 560 | 852 | 68 | 608 | 412 | 1011 |
| 61 | 612 | 392 | 72.5 | 72.5 | 215 | 585 | 580 | 870 | 68 | 612 | 414 | 1017 |
| 63 | 628 | 397 | 72.5 | 73 | 230 | 595 | 600 | 889 | 68 | 617 | 414 | 1022 |
All measurements in millimetres unless marked (°) for angles.
