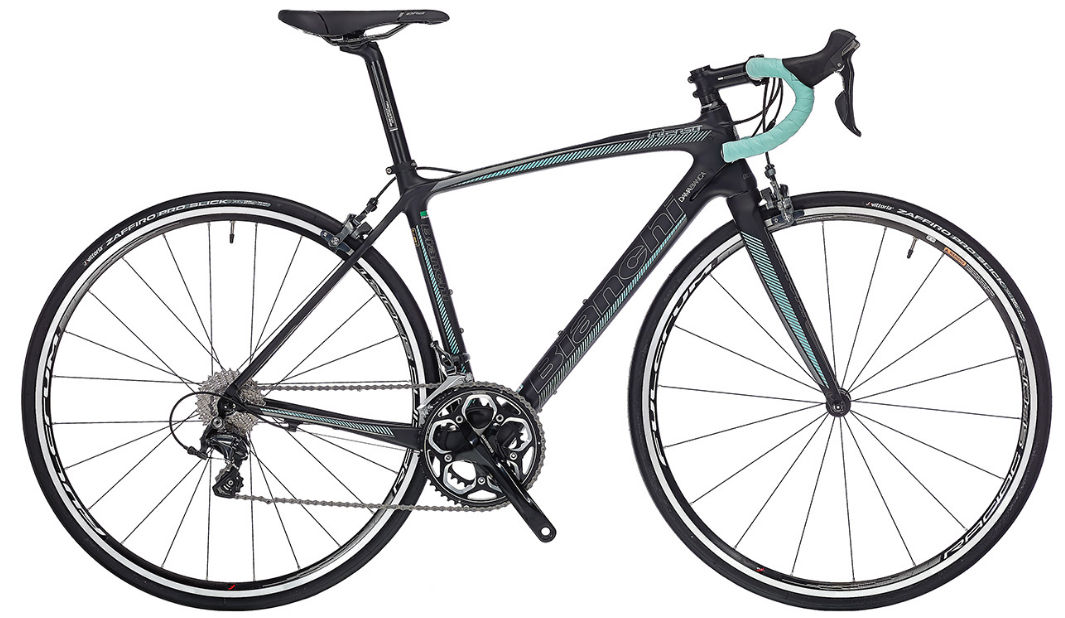

2017 Bianchi Intenso Dama Bianca geometry
Full frame geometry for the 2017 Bianchi Intenso Dama Bianca, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 519 | 358 | 74.5 | 70.5 | 125 | 515 | 440 | 758 | 58 | 577 | 408 | 978 |
| 50 | 537 | 373 | 74.5 | 71.5 | 140 | 525 | 470 | 783 | 58 | 579 | 408 | 980 |
| 53 | 551 | 375 | 74 | 71.5 | 155 | 535 | 500 | 796 | 68 | 586 | 409 | 985 |
| 55 | 567 | 381 | 73.5 | 72 | 170 | 550 | 520 | 815 | 68 | 592 | 410 | 992 |
All measurements in millimetres unless marked (°) for angles.
