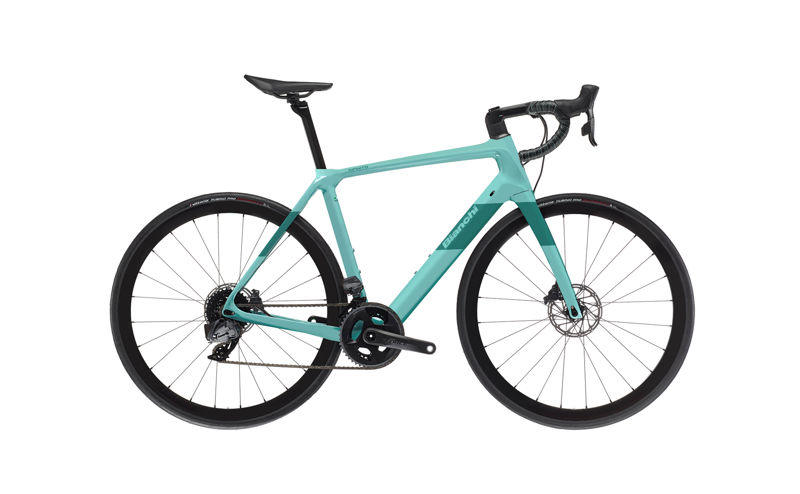

2022 Bianchi Infinito geometry
Full frame geometry for the 2022 Bianchi Infinito, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 42 | 521 | 370 | 74.5 | 70.5 | 120 | 515 | 68 | 581 | 415 | 986 | 43 |
| 45 | 539 | 375 | 74.5 | 71.5 | 135 | 525 | 68 | 583 | 415 | 988 | 43 |
| 48 | 553 | 376 | 74 | 71.5 | 150 | 535 | 68 | 588 | 415 | 993 | 43 |
| 50 | 569 | 381 | 73.5 | 72 | 165 | 550 | 68 | 593 | 415 | 999 | 43 |
| 52 | 585 | 386 | 73.5 | 72.5 | 180 | 560 | 68 | 599 | 415 | 1004 | 43 |
| 54 | 599 | 392 | 73 | 72.5 | 195 | 575 | 68 | 608 | 420 | 1018 | 43 |
| 56 | 614 | 392 | 72.5 | 72.5 | 210 | 585 | 68 | 612 | 420 | 1023 | 43 |
All measurements in millimetres unless marked (°) for angles.
