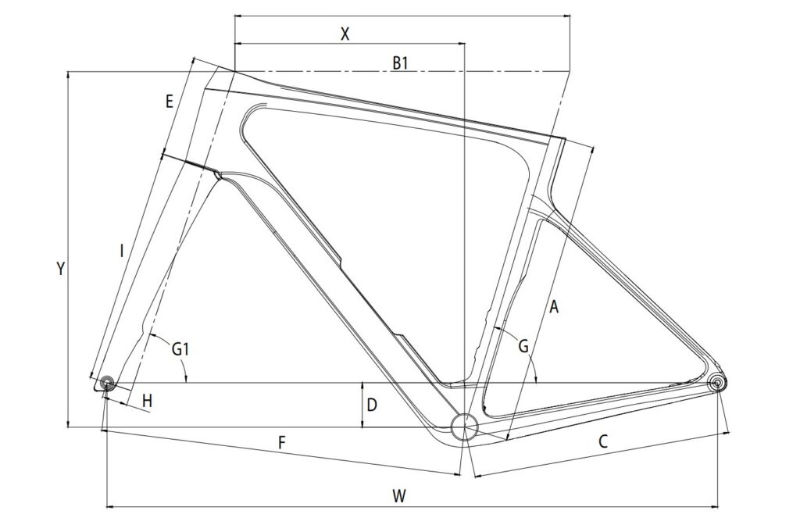

2026 Bianchi Infinito Launch Edition geometry
Full frame geometry for the 2026 Bianchi Infinito Launch Edition, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 470 | 531 | 370 | 75 | 70.5 | 115 | 73 | 582 | 420 | 990 | 42 |
| 500 | 552 | 372 | 74.5 | 71 | 135 | 73 | 586 | 422 | 997 | 42 |
| 530 | 566 | 373 | 74 | 71 | 150 | 73 | 591.5 | 422 | 1002 | 42 |
| 550 | 584 | 377 | 73.5 | 72 | 165 | 73 | 592 | 422 | 1003 | 42 |
| 570 | 600 | 382 | 73.5 | 72.5 | 180 | 73 | 597 | 422 | 1008 | 42 |
| 590 | 614.5 | 384 | 73 | 72.5 | 195 | 73 | 603 | 424 | 1017 | 42 |
| 610 | 629 | 387 | 72.5 | 72.5 | 210 | 73 | 610 | 424 | 1024 | 42 |
All measurements in millimetres unless marked (°) for angles.
