2022 Bianchi · G

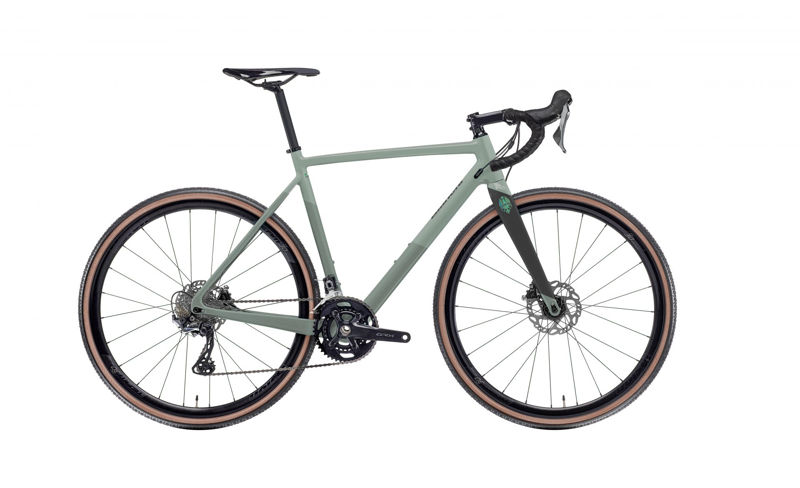

2022 Bianchi Impulso Pro geometry
Full frame geometry for the 2022 Bianchi Impulso Pro, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 480 | 510 | 378 | 75.5 | 70.5 | 100 | 510 | 53 | 590 | 425 | 1009 | 45 |
| 500 | 529 | 383 | 75 | 70.5 | 115 | 525 | 58 | 600 | 425 | 1018 | 45 |
| 520 | 542 | 385 | 74.5 | 71 | 125 | 535 | 60 | 601 | 425 | 1019 | 45 |
| 540 | 554 | 386 | 74 | 71.5 | 135 | 545 | 60 | 602 | 425 | 1020 | 45 |
| 560 | 569 | 391 | 73.5 | 72 | 145 | 560 | 62 | 606 | 425 | 1024 | 45 |
| 580 | 583 | 396 | 73 | 72.5 | 160 | 575 | 62 | 611 | 425 | 1028 | 45 |
All measurements in millimetres unless marked (°) for angles.
