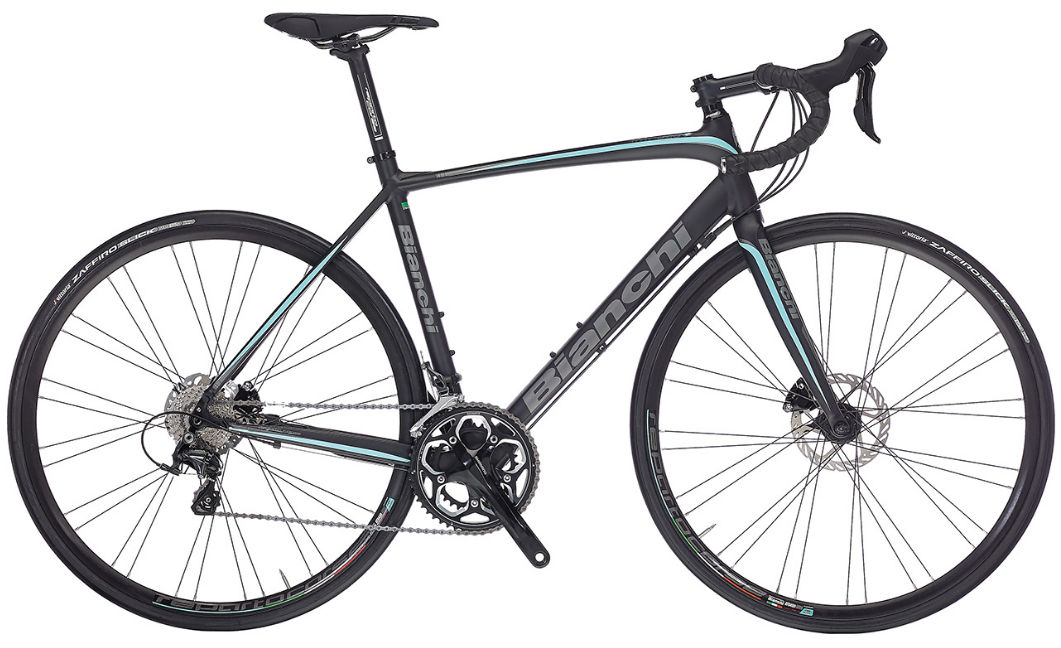

2017 Bianchi Impulso Disc geometry
Full frame geometry for the 2017 Bianchi Impulso Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 44 | 508 | 371 | 75 | 70.5 | 120 | 510 | 420 | 742 | 58 | 578 | 406 | 977 |
| 46 | 515 | 375 | 74.5 | 71 | 125 | 520 | 440 | 756 | 58 | 580 | 408 | 981 |
| 50 | 531 | 376 | 74.5 | 71.5 | 130 | 525 | 470 | 770 | 68 | 579 | 408 | 977 |
| 53 | 546 | 377 | 74 | 71.5 | 145 | 535 | 500 | 793 | 68 | 585 | 408 | 983 |
| 55 | 557 | 384 | 73.5 | 72 | 155 | 550 | 520 | 810 | 68 | 592 | 410 | 992 |
| 57 | 576 | 388 | 73.5 | 72 | 175 | 560 | 540 | 830 | 68 | 602 | 410 | 1002 |
| 59 | 587 | 395 | 73 | 72.5 | 185 | 575 | 560 | 846 | 68 | 607 | 410 | 1008 |
| 61 | 611 | 393 | 72.5 | 72.5 | 210 | 585 | 580 | 870 | 68 | 612 | 412 | 1015 |
| 63 | 622 | 399 | 72.5 | 73 | 220 | 595 | 600 | 886 | 68 | 617 | 412 | 1020 |
All measurements in millimetres unless marked (°) for angles.
