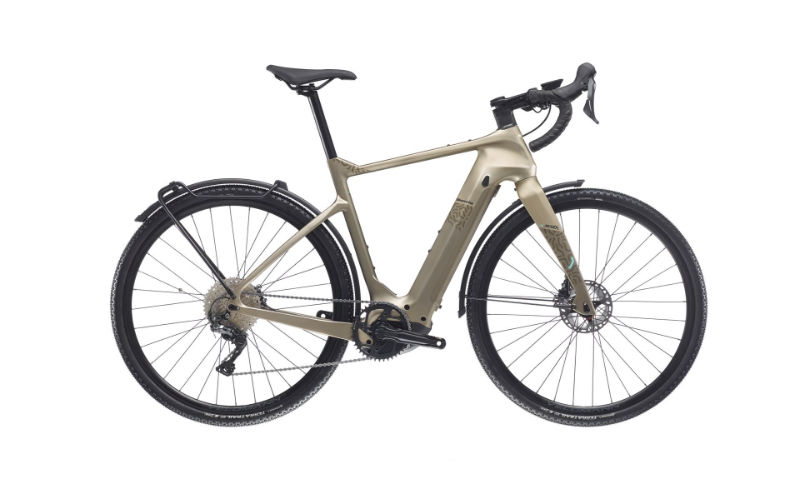

2025 Bianchi e-Arcadex Tourer geometry
Full frame geometry for the 2025 Bianchi e-Arcadex Tourer, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 564 | 364 | 74.5 | 70.5 | 125 | 520 | 440 | 70 | 596 | 434 | 1020 | 50 |
| SM | 579 | 366 | 74 | 70.5 | 140 | 532 | 480 | 70 | 603 | 434 | 1028 | 50 |
| MD | 594 | 372 | 73.5 | 71 | 155 | 548 | 520 | 70 | 609 | 434 | 1034 | 50 |
| LG | 609 | 382 | 73.5 | 71 | 170 | 563 | 550 | 70 | 625 | 434 | 1049 | 50 |
| XL | 623 | 392 | 73 | 71 | 185 | 583 | 580 | 70 | 640 | 434 | 1064 | 50 |
All measurements in millimetres unless marked (°) for angles.
