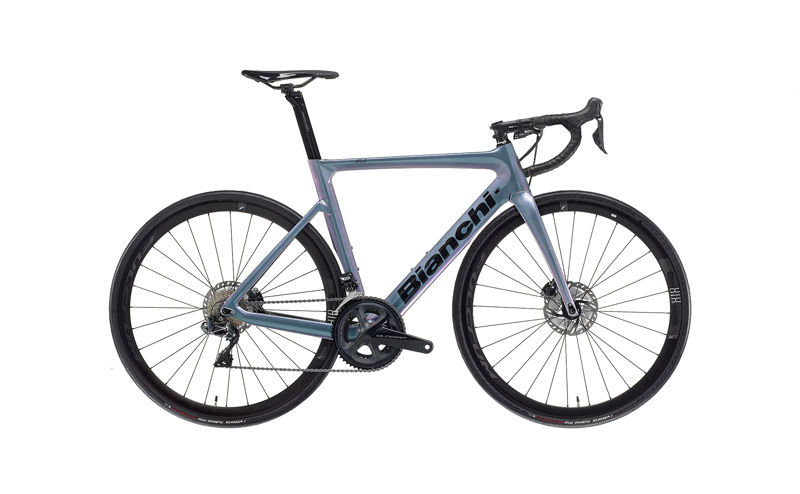

2022 Bianchi Aria geometry
Full frame geometry for the 2022 Bianchi Aria, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 44 | 481 | 376 | 75 | 70.5 | 95 | 505 | 420 | 58 | 410 | 575 |
| 47 | 490 | 379 | 74.5 | 70.5 | 105 | 515 | 440 | 58 | 410 | 581 |
| 50 | 499 | 387 | 74.5 | 71.5 | 110 | 525 | 470 | 58 | 410 | 582 |
| 53 | 525 | 385 | 74 | 72 | 125 | 0.5 | 500 | 0.7 | 410 | 583 |
| 55 | 541 | 390 | 73.5 | 72.5 | 140 | 550 | 520 | 68 | 410 | 588 |
| 57 | 557 | 395 | 73.5 | 73 | 155 | 560 | 540 | 68 | 410 | 593 |
| 59 | 576 | 397 | 73 | 73 | 175 | 575 | 560 | 68 | 412 | 603 |
| 61 | 595 | 398 | 72.5 | 73 | 195 | 585 | 580 | 68 | 414 | 607 |
All measurements in millimetres unless marked (°) for angles.
