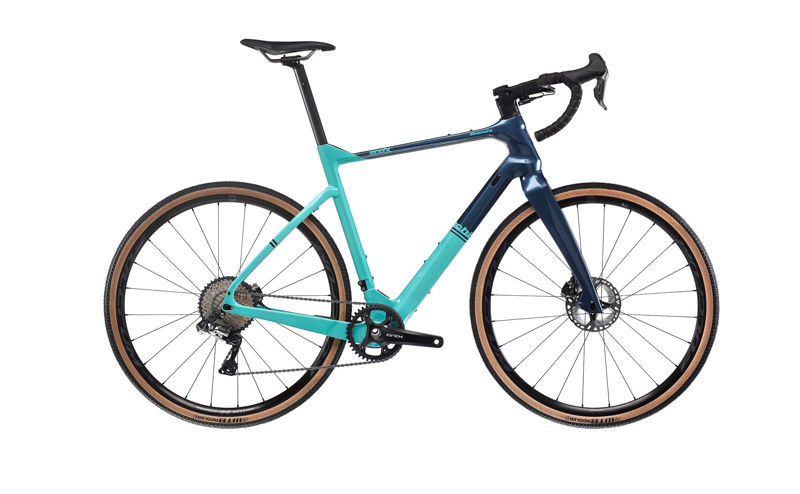

2023 Bianchi Arcadex geometry
Full frame geometry for the 2023 Bianchi Arcadex, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 565 | 365 | 74.5 | 70.5 | 120 | 522 | 440 | 75 | 596 | 425 | 1010 | 50 |
| SM | 579 | 369 | 74 | 70.5 | 135 | 535 | 480 | 75 | 605 | 425 | 1018 | 50 |
| MD | 595 | 374 | 73.5 | 71 | 150 | 550 | 520 | 75 | 610 | 425 | 1024 | 50 |
| LG | 609 | 384 | 73.5 | 71 | 165 | 565 | 550 | 75 | 626 | 425 | 1039 | 50 |
| XL | 623 | 609 | 73 | 71 | 180 | 585 | 580 | 75 | 640 | 425 | 1054 | 50 |
All measurements in millimetres unless marked (°) for angles.
