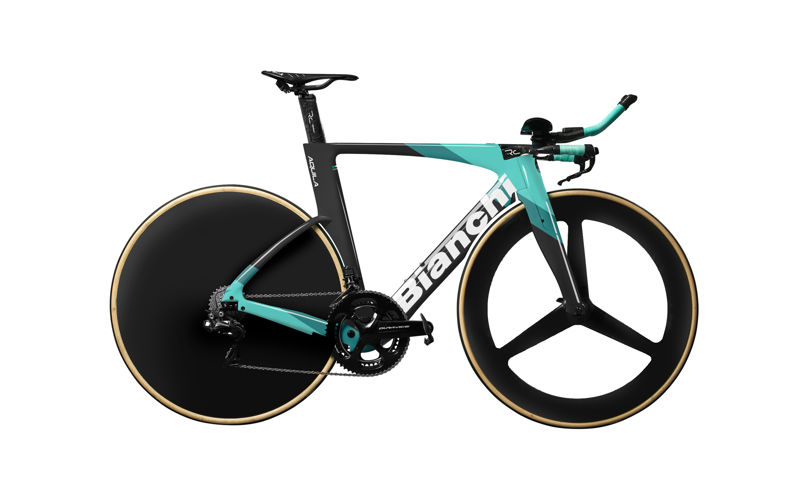

2022 Bianchi Aquila geometry
Full frame geometry for the 2022 Bianchi Aquila, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 483 | 378 | 76.5 | 72 | 80 | 500 | 460 | 75 | 398 | 563 |
| 55 | 492 | 403 | 76.5 | 72 | 90 | 530 | 550 | 75 | 398 | 590 |
| 58 | 521 | 422 | 76.5 | 72 | 120 | 555 | 580 | 75 | 398 | 618 |
| 61 | 550 | 440 | 76.5 | 72 | 150 | 580 | 610 | 75 | 398 | 645 |
All measurements in millimetres unless marked (°) for angles.
