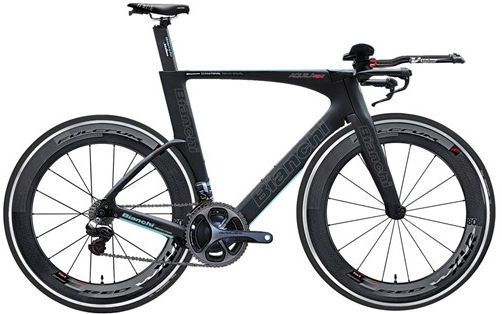

2015 Bianchi Aquila CV geometry
Full frame geometry for the 2015 Bianchi Aquila CV, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 483 | 378 | 76.5 | 72 | 80 | 500 | 460 | 731 | 75 | 563 | 398 | 949 |
| S | 492 | 403 | 76.5 | 72 | 90 | 530 | 550 | 782 | 75 | 590 | 398 | 976 |
| M | 521 | 422 | 76.5 | 72 | 120 | 555 | 580 | 812 | 75 | 618 | 398 | 1004 |
| L | 550 | 440 | 76.5 | 72 | 150 | 580 | 610 | 842 | 75 | 645 | 398 | 1031 |
All measurements in millimetres unless marked (°) for angles.
