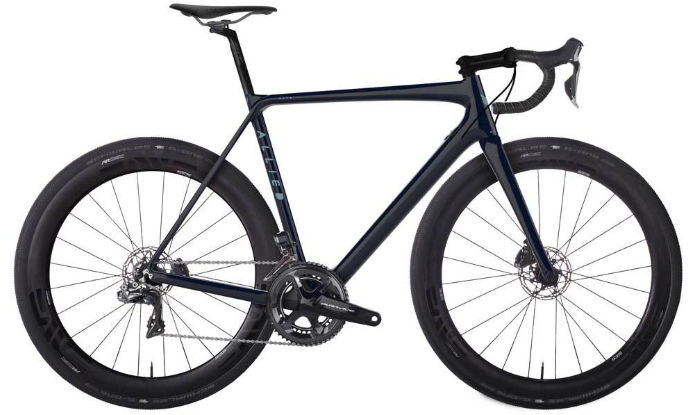

2017 Allied Alfa All Road geometry
Full frame geometry for the 2017 Allied Alfa All Road, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 503 | 380 | 75.3 | 72 | 97 | 513 | 482 | 770 | 72 | 575 | 420 | 984 | 48 | 63 |
| 49+ | 520 | 374 | 75.3 | 72 | 117 | 513 | 482 | 779 | 72 | 575 | 420 | 984 | 48 | 63 |
| 52 | 524 | 385 | 74 | 73 | 117 | 537 | 512 | 775 | 72 | 580 | 420 | 989 | 48 | 57 |
| 54 | 539 | 388 | 73.5 | 73 | 137 | 548 | 532 | 791 | 69 | 587 | 420 | 997 | 48 | 57 |
| 52+ | 542 | 379 | 74 | 73 | 137 | 537 | 512 | 775 | 72 | 580 | 420 | 989 | 48 | 57 |
| 54+ | 559 | 380 | 73.5 | 73 | 157 | 548 | 532 | 791 | 69 | 587 | 420 | 997 | 48 | 57 |
| 56 | 562 | 394 | 73 | 73.3 | 157 | 565 | 552 | 815 | 69 | 597 | 420 | 1007 | 48 | 55 |
| 56+ | 579 | 389 | 73 | 73.3 | 177 | 565 | 552 | 815 | 69 | 597 | 420 | 1007 | 48 | 55 |
| 58 | 589 | 401 | 73 | 73.8 | 187 | 583 | 572 | 839 | 68 | 612 | 420 | 1023 | 48 | 51 |
| 58+ | 607 | 396 | 73 | 73.5 | 207 | 583 | 572 | 839 | 68 | 612 | 420 | 1023 | 48 | 53 |
| 61 | 610 | 408 | 72.3 | 72.3 | 207 | 601 | 602 | 894 | 68 | 619 | 420 | 1030 | 48 | 61 |
| 61+ | 628 | 408 | 72.3 | 73.8 | 227 | 601 | 602 | 903 | 68 | 619 | 420 | 1030 | 48 | 51 |
All measurements in millimetres unless marked (°) for angles.
