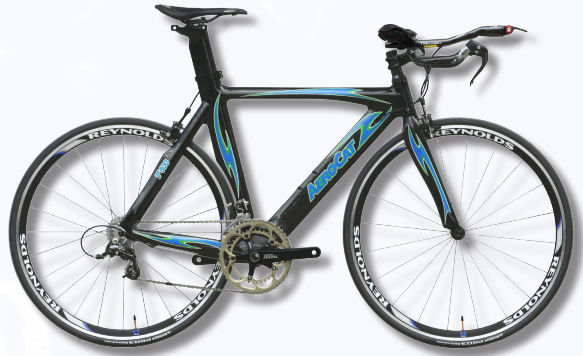

2010 Aerocat T600 geometry
Full frame geometry for the 2010 Aerocat T600, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 53 | 495 | 403 | 76 | 72.5 | 90 | 526 | 526 | 740 | 68 | 580 | 390 | 960 | 43 | 60 |
| 55 | 514 | 433 | 76 | 74 | 105 | 561 | 550 | 760 | 68 | 594 | 390 | 974 | 43 | 51 |
| 58 | 533 | 439 | 76 | 74 | 125 | 572 | 580 | 790 | 68 | 610 | 390 | 990 | 43 | 51 |
All measurements in millimetres unless marked (°) for angles.
