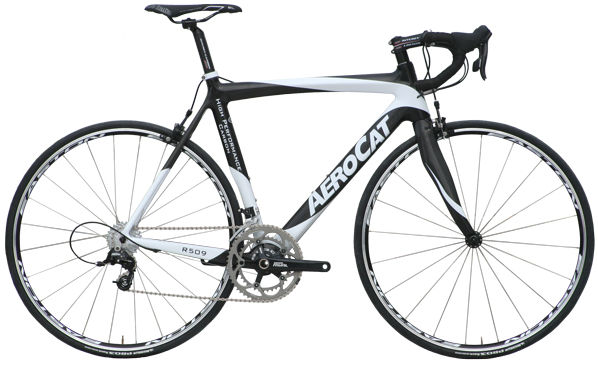

2010 Aerocat R509 geometry
Full frame geometry for the 2010 Aerocat R509, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 505 | 361 | 73 | 72.5 | 100 | 515 | 480 | 717 | 68 | 547 | 399 | 936 | 43 | 60 |
| 51 | 525 | 369 | 73 | 73 | 120 | 530 | 510 | 738 | 68 | 558 | 399 | 947 | 43 | 57 |
| 54 | 545 | 379 | 73 | 73 | 140 | 545 | 540 | 757 | 68 | 573 | 399 | 962 | 43 | 57 |
| 56 | 564 | 393 | 73 | 73 | 160 | 565 | 560 | 776 | 68 | 593 | 399 | 982 | 43 | 57 |
| 58 | 583 | 402 | 73 | 73 | 180 | 580 | 580 | 796 | 68 | 608 | 399 | 997 | 43 | 57 |
| 61 | 602 | 408 | 73 | 73 | 200 | 592 | 610 | 815 | 68 | 620 | 399 | 1009 | 43 | 57 |
All measurements in millimetres unless marked (°) for angles.
