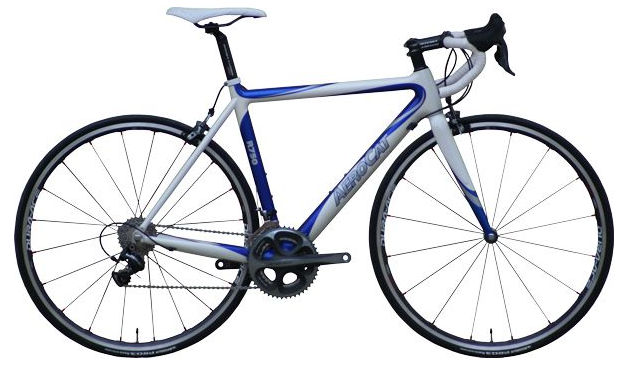

2010 Aerocat R750 geometry
Full frame geometry for the 2010 Aerocat R750, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 522 | 375 | 75 | 72 | 120 | 515 | 500 | 721 | 68 | 571 | 406 | 967 | 43 | 63 |
| 52 | 532 | 380 | 74.5 | 72 | 130 | 527 | 520 | 739 | 68 | 578 | 406 | 974 | 43 | 63 |
| 54 | 548 | 383 | 74 | 72.5 | 145 | 540 | 540 | 757 | 68 | 582 | 406 | 978 | 43 | 60 |
| 56 | 557 | 393 | 73.5 | 72.5 | 155 | 558 | 560 | 776 | 68 | 595 | 406 | 991 | 43 | 60 |
| 58 | 573 | 390 | 73.5 | 73 | 170 | 560 | 580 | 795 | 68 | 601 | 406 | 997 | 43 | 57 |
| 60 | 592 | 398 | 73 | 73 | 190 | 579 | 600 | 814 | 68 | 606 | 406 | 1002 | 43 | 57 |
All measurements in millimetres unless marked (°) for angles.
