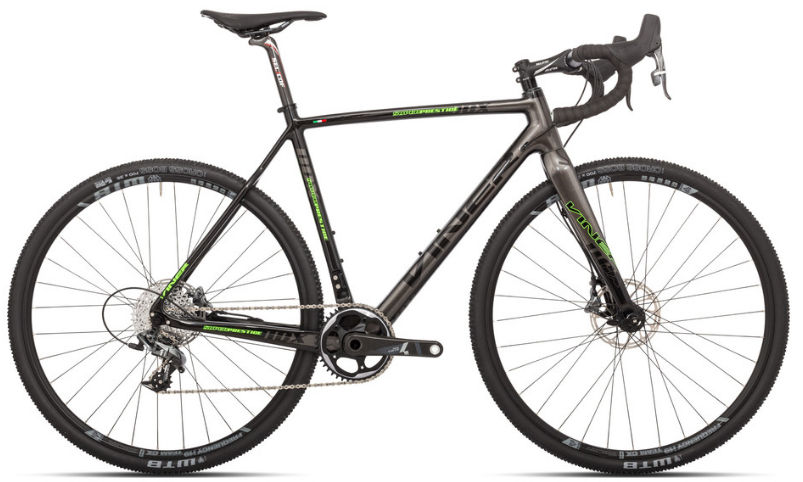

2016 Viner Super Prestige geometry
Full frame geometry for the 2016 Viner Super Prestige, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S/50 | 523 | 375 | 75 | 70.5 | 115 | 516 | 500 | 53 | 425 |
| M/52 | 536 | 377 | 74.5 | 71 | 125 | 526 | 520 | 55 | 425 |
| L/54 | 547 | 379 | 74 | 71.5 | 135 | 536 | 540 | 55 | 425 |
| XL/56 | 561 | 386 | 73.5 | 72 | 145 | 552 | 560 | 57 | 425 |
All measurements in millimetres unless marked (°) for angles.
