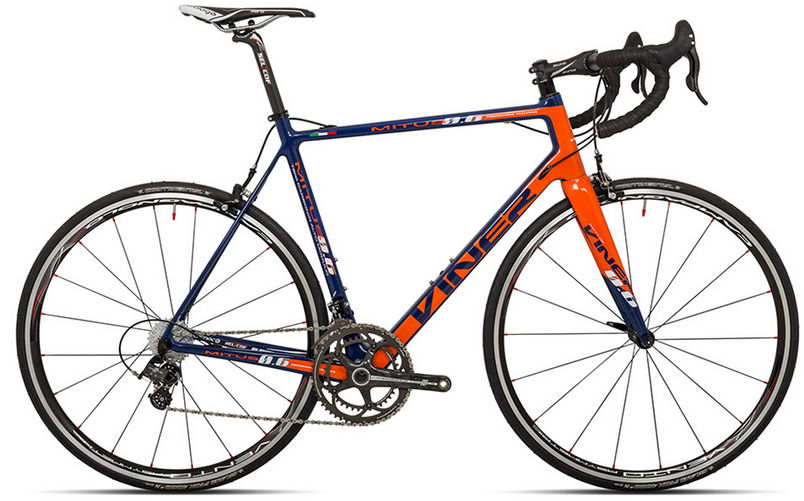

2015 Viner Mitus 0.6 geometry
Full frame geometry for the 2015 Viner Mitus 0.6, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| XS | 513 | 373 | 74.5 | 71.5 | 110 | 515 | 72 | 408 |
| S | 520 | 381 | 74.5 | 72 | 115 | 525 | 72 | 408 |
| M | 543 | 385 | 73.5 | 73 | 140 | 545 | 69 | 408 |
| L | 558 | 395 | 73.5 | 73 | 155 | 560 | 69 | 408 |
| XL | 579 | 398 | 73 | 73.5 | 175 | 575 | 69 | 410 |
| XXL | 598 | 402 | 72.5 | 73.5 | 195 | 590 | 69 | 410 |
All measurements in millimetres unless marked (°) for angles.
