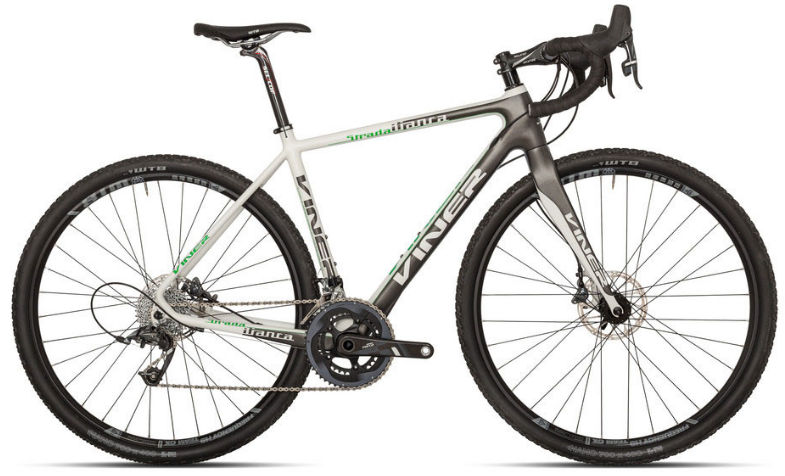

2016 Viner Strada Bianca MK I geometry
Full frame geometry for the 2016 Viner Strada Bianca MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XS/47 | 533 | 355 | 74 | 70 | 110 | 508 | 470 | 70 | 430 |
| S/50 | 546 | 365 | 74 | 71 | 120 | 521 | 500 | 70 | 430 |
| M/53 | 567 | 375 | 73.5 | 71.5 | 140 | 543 | 530 | 70 | 430 |
| L/56 | 581 | 386 | 73 | 71.5 | 155 | 563 | 560 | 70 | 430 |
| XL/59 | 600 | 397 | 73 | 71.5 | 175 | 580 | 590 | 70 | 430 |
All measurements in millimetres unless marked (°) for angles.
