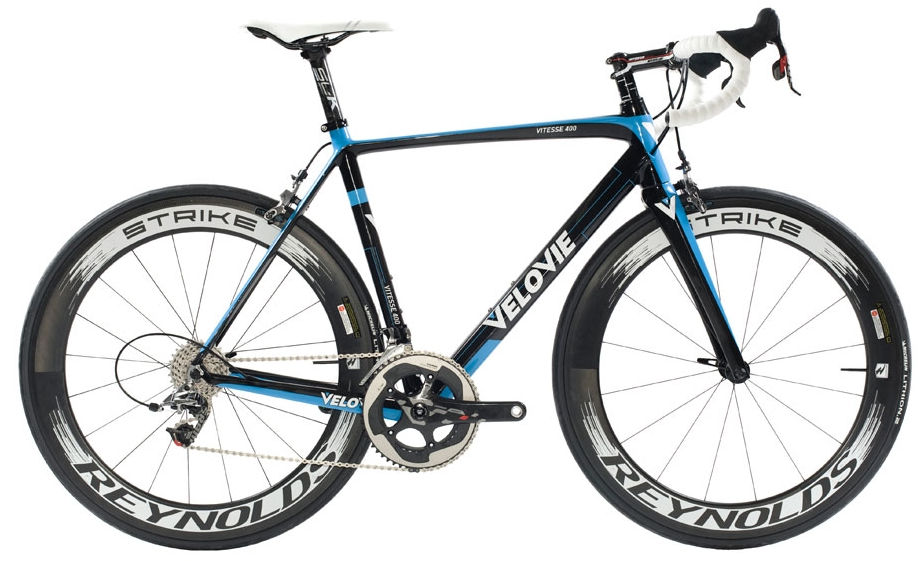

2014 Velovie Vitesse 400 geometry

Name: 2014 Velovie Vitesse 400
Brand: Velovie

Full frame geometry for the 2014 Velovie Vitesse 400, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)	Trail (mm)
45	501	381	75	72.5	95	515	450	501	405	962	45	58
48	501	386	74.5	72.5	95	525	480	501	405	967	45	58
51	523	385	73.5	72.5	120	540	510	523	405	974	45	58
54	557	385	73.5	73	155	555	540	557	405	980	45	55
57	588	385	73	73	190	565	570	588	410	996	45	55
60	612	403	73	73	215	590	600	612	410	1021	45	55
63	629	417	72.5	73	235	615	630	629	410	1041	45	55

All measurements in millimetres unless marked (°) for angles.
