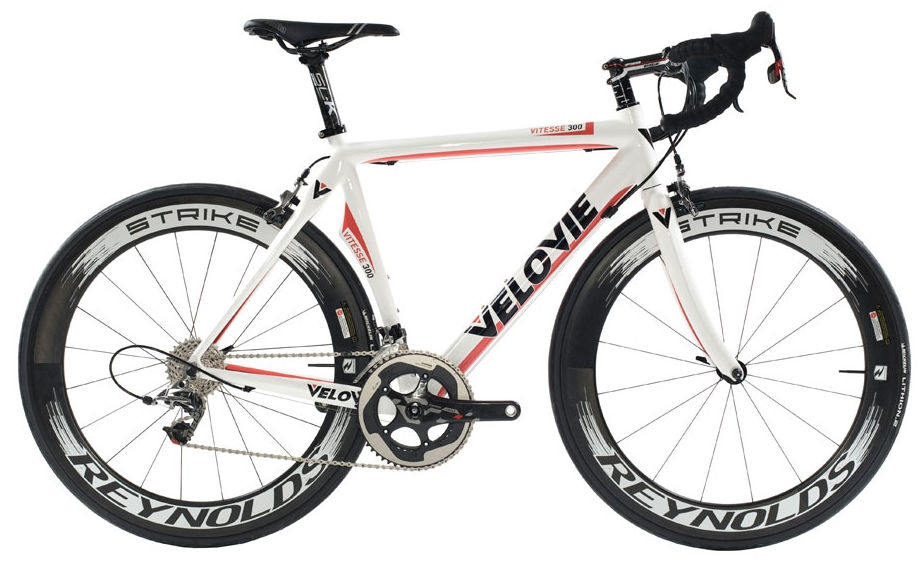

2014 Velovie Vitesse 300 geometry
Full frame geometry for the 2014 Velovie Vitesse 300, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 507 | 372 | 75 | 71 | 110 | 509 | 470 | 507 | 405 | 969 | 43 | 70 |
| 50 | 520 | 382 | 74.5 | 72 | 120 | 527 | 500 | 520 | 405 | 975 | 43 | 63 |
| 53 | 550 | 384 | 73.5 | 72.5 | 150 | 548 | 530 | 550 | 405 | 982 | 43 | 60 |
| 56 | 562 | 393 | 73.5 | 73 | 160 | 562 | 560 | 562 | 405 | 989 | 43 | 57 |
| 58 | 581 | 397 | 73 | 73 | 180 | 574 | 580 | 581 | 405 | 1000 | 43 | 57 |
| 60 | 602 | 402 | 73 | 73 | 200 | 585 | 600 | 602 | 405 | 1005 | 43 | 57 |
All measurements in millimetres unless marked (°) for angles.
