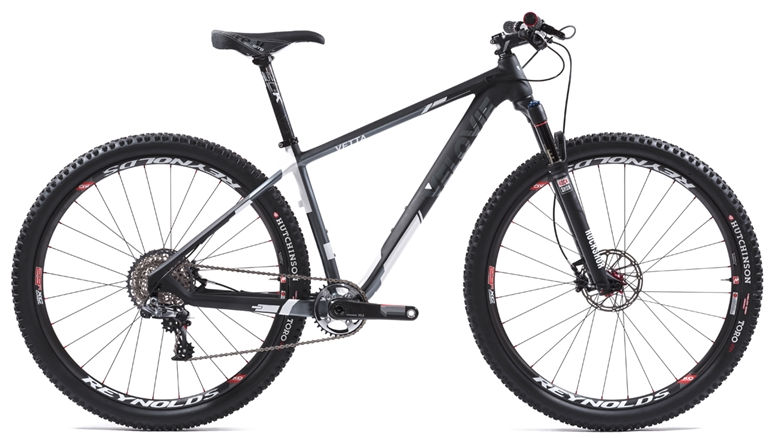

2014 Velovie Vetta geometry
Full frame geometry for the 2014 Velovie Vetta, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 623 | 384 | 73 | 69.5 | 105 | 575 | 390 | 65 | 445 | 1087 | 44 |
| 17 | 623 | 404 | 73 | 69.5 | 105 | 595 | 430 | 65 | 445 | 1107 | 44 |
| 19 | 626 | 424 | 73 | 70 | 105 | 615 | 480 | 65 | 445 | 1123 | 44 |
| 21 | 626 | 439 | 73 | 70 | 105 | 630 | 530 | 65 | 445 | 1139 | 44 |
All measurements in millimetres unless marked (°) for angles.
