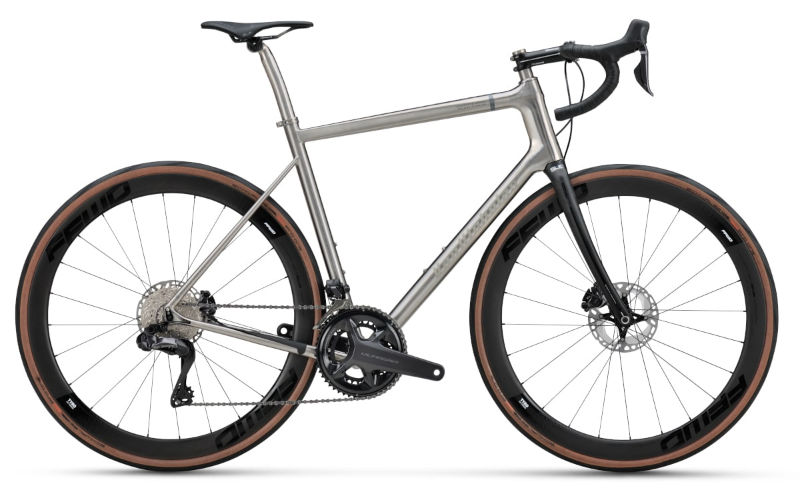

2026 Van Nicholas Zephyr geometry
Full frame geometry for the 2026 Van Nicholas Zephyr, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 546 | 361 | 74.5 | 71 | 135 | 512 | 450 | 724 | 75 | 573 | 425 | 986 | 43 |
| S | 556 | 362 | 74 | 71.5 | 145 | 521 | 480 | 747 | 75 | 573 | 425 | 986 | 43 |
| M | 577 | 366 | 73.5 | 72 | 165 | 537 | 510 | 771 | 75 | 579 | 425 | 993 | 43 |
| L | 598 | 370 | 72.5 | 72.5 | 185 | 558 | 540 | 797 | 75 | 584 | 425 | 998 | 43 |
| XL | 623 | 373 | 72 | 73 | 210 | 576 | 570 | 822 | 75 | 591 | 425 | 1005 | 43 |
| XXL | 643 | 391 | 72 | 73 | 230 | 600 | 610 | 845 | 75 | 614 | 425 | 1028 | 43 |
All measurements in millimetres unless marked (°) for angles.
