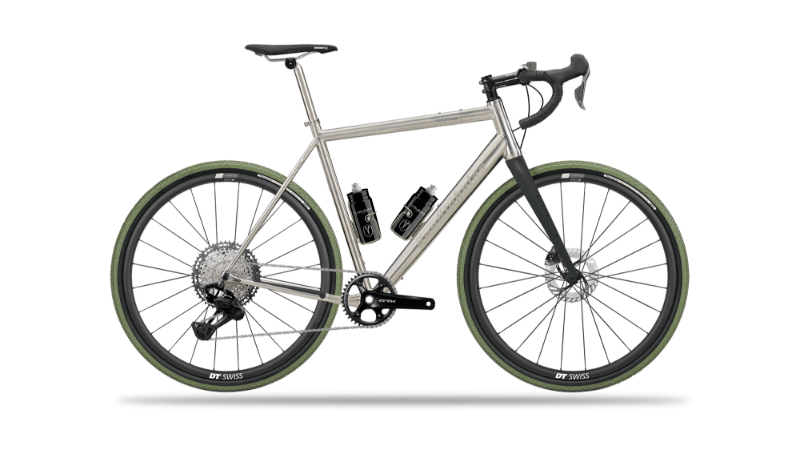

2026 Van Nicholas Rowtag geometry
Full frame geometry for the 2026 Van Nicholas Rowtag, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 543 | 367 | 74 | 70 | 120 | 525 | 480 | 768 | 70 | 597 | 440 | 1027 | 50 |
| S | 559 | 378 | 74 | 70.5 | 135 | 540 | 510 | 790 | 70 | 608 | 440 | 1038 | 50 |
| M | 582 | 381 | 74 | 70.5 | 160 | 550 | 540 | 816 | 70 | 619 | 440 | 1050 | 50 |
| L | 608 | 384 | 73 | 70.5 | 185 | 570 | 570 | 841 | 70 | 630 | 440 | 1061 | 50 |
| XL | 631 | 391 | 73 | 71 | 210 | 585 | 600 | 868 | 70 | 641 | 440 | 1071 | 50 |
| XXL | 664 | 396 | 72.5 | 71 | 225 | 600 | 640 | 893 | 70 | 650 | 440 | 1081 | 50 |
All measurements in millimetres unless marked (°) for angles.
