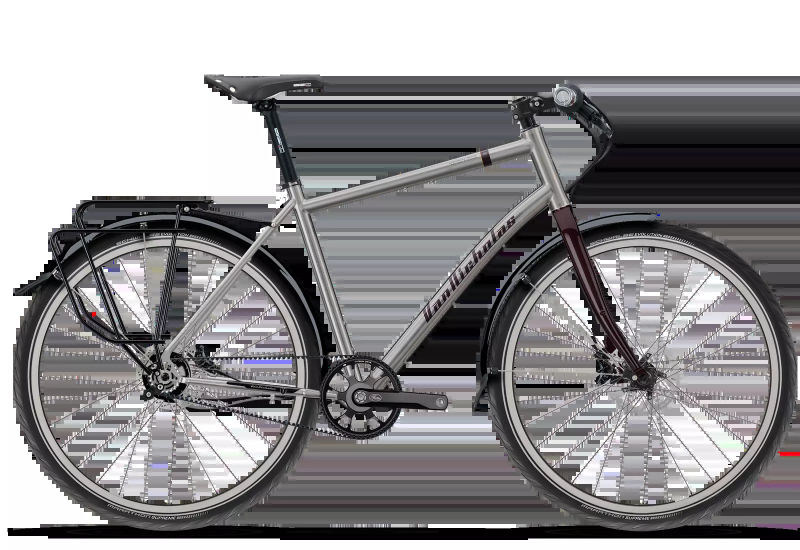

2026 Van Nicholas Pioneer geometry
Full frame geometry for the 2026 Van Nicholas Pioneer, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 556 | 388 | 73 | 69 | 150 | 565 | 470 | 797 | 64 | 631 | 456 | 1080 | 41 |
| 51 | 574 | 401 | 73 | 69 | 170 | 585 | 410 | 824 | 64 | 653 | 456 | 1101 | 41 |
| 54 | 598 | 409 | 72.5 | 69 | 195 | 605 | 540 | 850 | 64 | 669 | 456 | 1117 | 41 |
| 57 | 626 | 414 | 72 | 69 | 225 | 625 | 570 | 877 | 64 | 684 | 456 | 1133 | 41 |
All measurements in millimetres unless marked (°) for angles.
