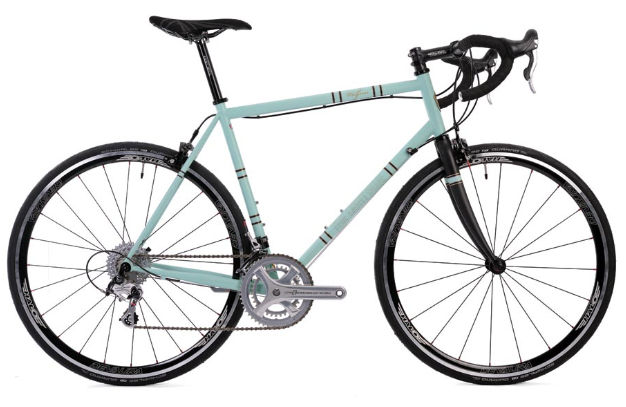

2019 The Light Blue Wolfson geometry
Full frame geometry for the 2019 The Light Blue Wolfson, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 533 | 377 | 74 | 70.5 | 120 | 530 | 460 | 768 | 72 | 598 | 413 | 1000 | 50 |
| SM | 556 | 391 | 74 | 71.5 | 140 | 550 | 490 | 795 | 72 | 610 | 413 | 1012 | 50 |
| M | 581 | 394 | 73 | 72.5 | 160 | 572 | 520 | 824 | 72 | 606 | 413 | 1008 | 50 |
| ML | 602 | 406 | 73 | 73 | 180 | 590 | 550 | 851 | 72 | 620 | 413 | 1022 | 50 |
| L | 623 | 420 | 73 | 73.5 | 200 | 610 | 580 | 877 | 72 | 633 | 413 | 1036 | 50 |
All measurements in millimetres unless marked (°) for angles.
