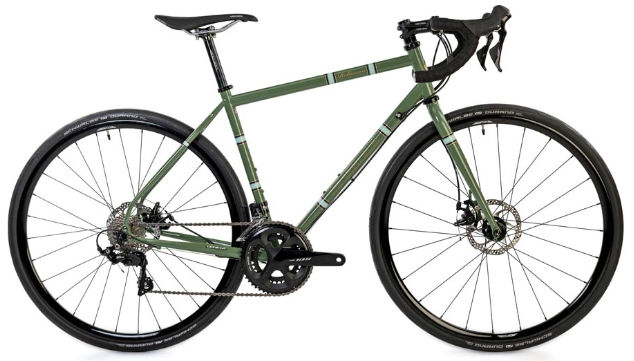

2019 The Light Blue Robinson V2 geometry
Full frame geometry for the 2019 The Light Blue Robinson V2, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 543 | 377 | 74 | 70.5 | 120 | 533 | 460 | 773 | 72 | 601 | 425 | 1016 | 50 |
| SM | 566 | 382 | 73.5 | 71.5 | 140 | 550 | 490 | 801 | 72 | 604 | 425 | 1019 | 50 |
| M | 591 | 394 | 73 | 72.5 | 160 | 575 | 520 | 829 | 72 | 609 | 425 | 1024 | 50 |
| ML | 611 | 412 | 73 | 73 | 180 | 590 | 550 | 855 | 72 | 619 | 425 | 1034 | 50 |
| L | 633 | 416 | 73 | 73.5 | 200 | 610 | 580 | 882 | 72 | 633 | 425 | 1048 | 50 |
All measurements in millimetres unless marked (°) for angles.
