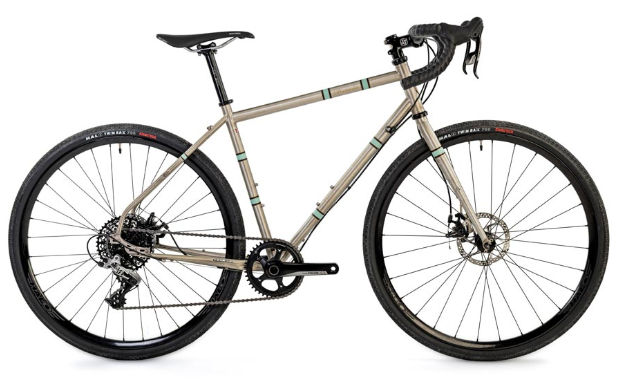

2019 The Light Blue Darwin geometry
Full frame geometry for the 2019 The Light Blue Darwin, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 582 | 368 | 73.5 | 70 | 150 | 541 | 500 | 814 | 72 | 612 | 445 | 1047 | 50 |
| SM | 603 | 376 | 73.5 | 70.5 | 170 | 555 | 520 | 835 | 72 | 622 | 445 | 1057 | 50 |
| M | 615 | 388 | 73.5 | 71 | 180 | 570 | 535 | 848 | 72 | 632 | 445 | 1067 | 50 |
| ML | 626 | 400 | 73.5 | 71.5 | 190 | 585 | 550 | 862 | 72 | 642 | 445 | 1077 | 50 |
| L | 647 | 408 | 73.5 | 72 | 210 | 600 | 570 | 883 | 72 | 640 | 445 | 1075 | 50 |
All measurements in millimetres unless marked (°) for angles.
