2018 Stoemper Taylor MKII geometry

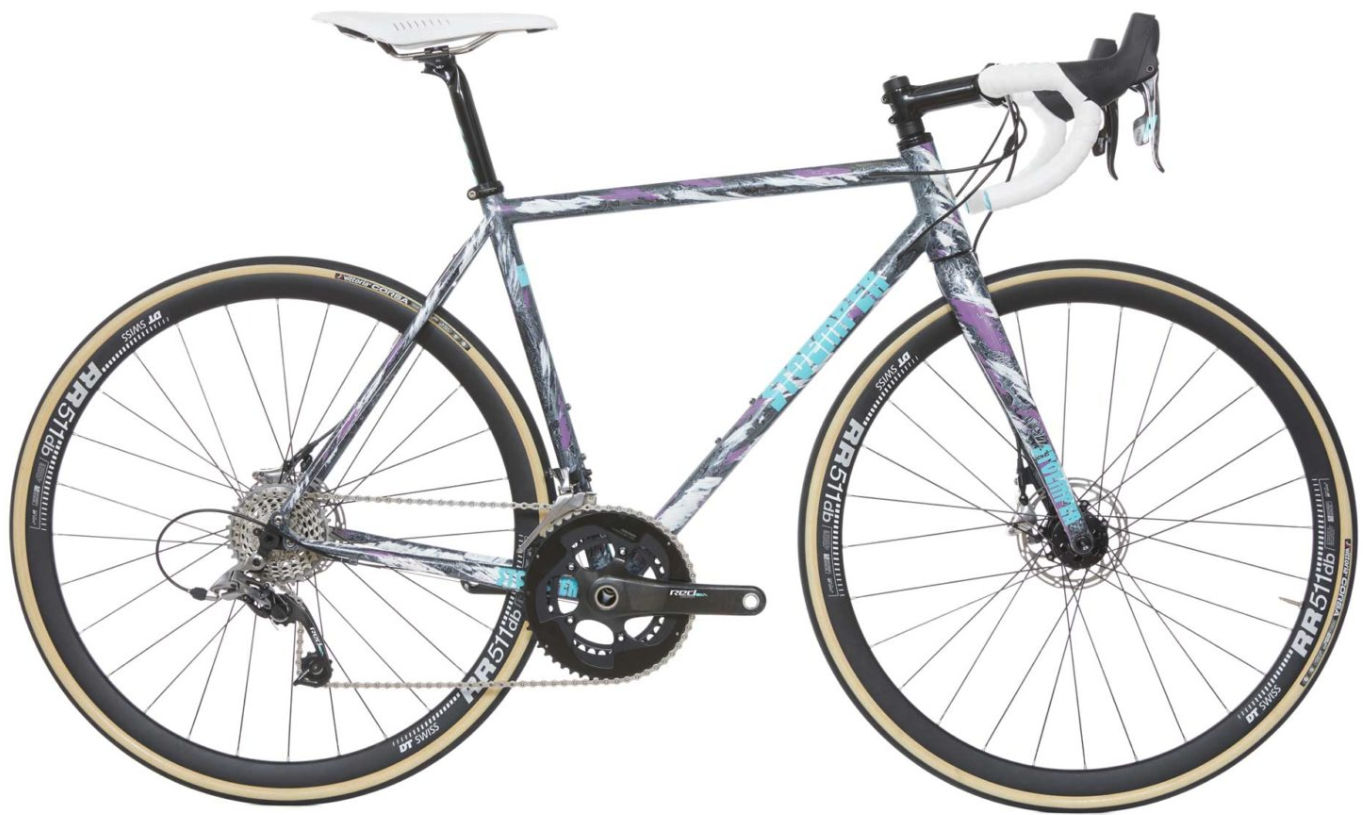

Name: 2018 Stoemper Taylor MKII
Brand: Stoemper

Full frame geometry for the 2018 Stoemper Taylor MKII, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)	Trail (mm)
45	515	352	75	71.5	116	490	430	732	72	408	947	43	68
47	521	361	74.5	72	120	505	450	744	72	408	953	43	65
50	526	364	74	72	125	515	480	760	72	408	958	43	65
52	532	373	74	72.5	132	525	500	774	70	408	965	43	62
53	537	376	73.5	72.5	138	535	510	781	70	408	970	43	62
54	548	378	73.5	73	147	540	520	791	70	408	971	43	59
55	550	387	73.5	73	150	550	530	797	70	408	981	43	59
56	569	386	73	73.5	168	560	540	811	70	408	983	43	56
57	579	388	73	73.5	178	565	550	821	70	408	988	43	56
58	588	395	73	73.5	188	575	560	830	70	408	995	43	56
59	595	398	73	73.5	195	580	570	839	70	410	1002	43	56
60	608	393	72.5	73.5	208	585	580	849	70	410	1001	43	56
62	621	404	72.5	73.5	222	600	600	865	70	410	1016	43	56

All measurements in millimetres unless marked (°) for angles.
