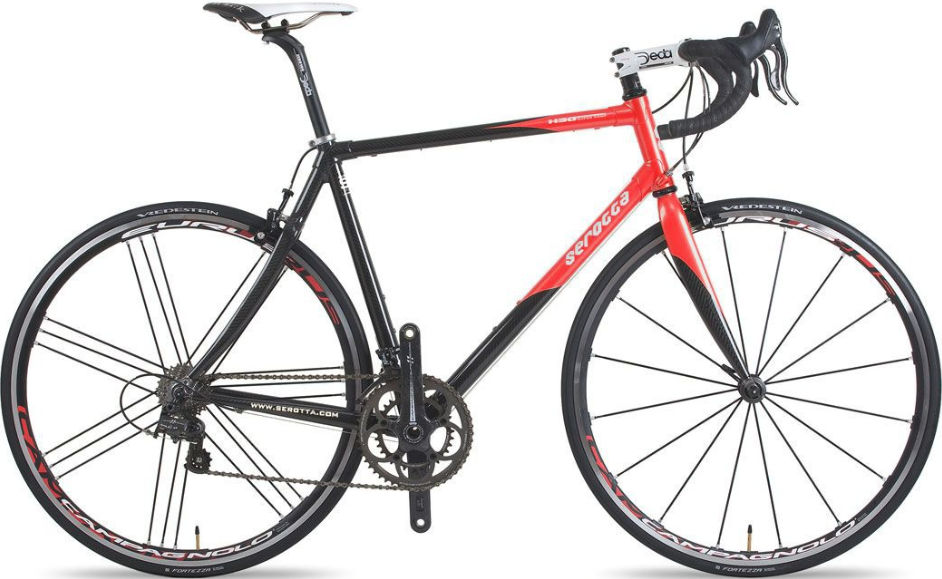

2010 Serotta HSG Carbon geometry
Full frame geometry for the 2010 Serotta HSG Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 503 | 386 | 74.5 | 72 | 101 | 525 | 750 | 70 | 574 | 405 | 968 | 43 | 63 |
| 48 | 506 | 379 | 75 | 72 | 101 | 515 | 748 | 73 | 567 | 405 | 961 | 43 | 63 |
| 52 | 507 | 390 | 74 | 72 | 105 | 535 | 751 | 70 | 579 | 405 | 974 | 43 | 63 |
| 52S | 507 | 380 | 74 | 72 | 105 | 525 | 751 | 70 | 569 | 405 | 963 | 43 | 63 |
| 54 | 525 | 394 | 73.5 | 73 | 121 | 550 | 769 | 70 | 580 | 408 | 978 | 43 | 57 |
| 54S | 525 | 384 | 73.5 | 73 | 121 | 540 | 769 | 70 | 570 | 408 | 968 | 43 | 57 |
| 56 | 543 | 404 | 73 | 73.5 | 138 | 570 | 785 | 70 | 591 | 410 | 991 | 43 | 54 |
| 58 | 564 | 413 | 73 | 73.5 | 160 | 585 | 808 | 70 | 606 | 410 | 1005 | 43 | 54 |
| 60 | 588 | 415 | 73 | 73.5 | 185 | 595 | 829 | 70 | 615 | 415 | 1020 | 43 | 54 |
| 62 | 607 | 414 | 73 | 73.5 | 205 | 600 | 848 | 70 | 620 | 415 | 1025 | 43 | 54 |
All measurements in millimetres unless marked (°) for angles.
