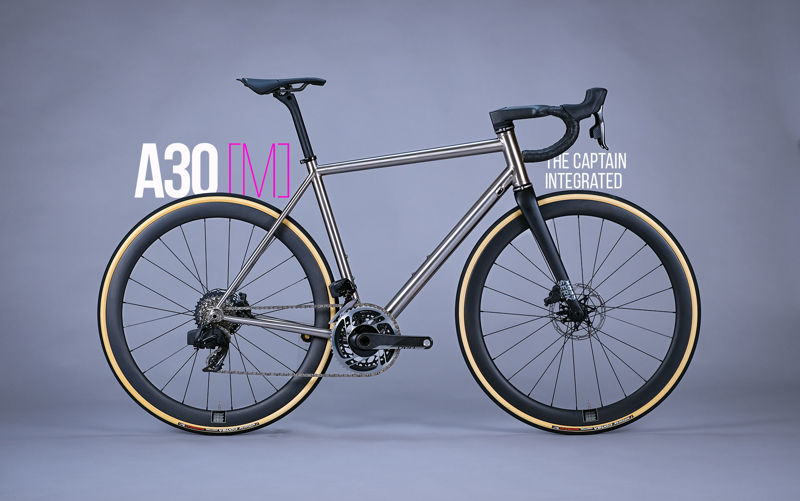

2022 Serk A30M geometry
Full frame geometry for the 2022 Serk A30M, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXL | 398 | 406 | 72.5 | 73.5 | 202 | 602 | 580 | 73 | 420 | 1027 | 398 | 55.6 |
| XS | 506 | 366 | 74.5 | 70.5 | 93 | 506 | 470 | 73 | 420 | 986 | 50 | 67 |
| S | 529 | 374 | 74 | 72 | 109 | 526 | 490 | 73 | 420 | 981 | 43 | 64.9 |
| M | 552 | 382 | 73.5 | 72.5 | 132 | 546 | 510 | 73 | 420 | 992 | 43 | 61.8 |
| L | 575 | 390 | 73 | 73 | 154 | 566 | 530 | 73 | 420 | 1002 | 43 | 58.7 |
| XL | 598 | 398 | 72.5 | 73.5 | 176 | 587 | 550 | 73 | 420 | 1012 | 43 | 55.6 |
All measurements in millimetres unless marked (°) for angles.
