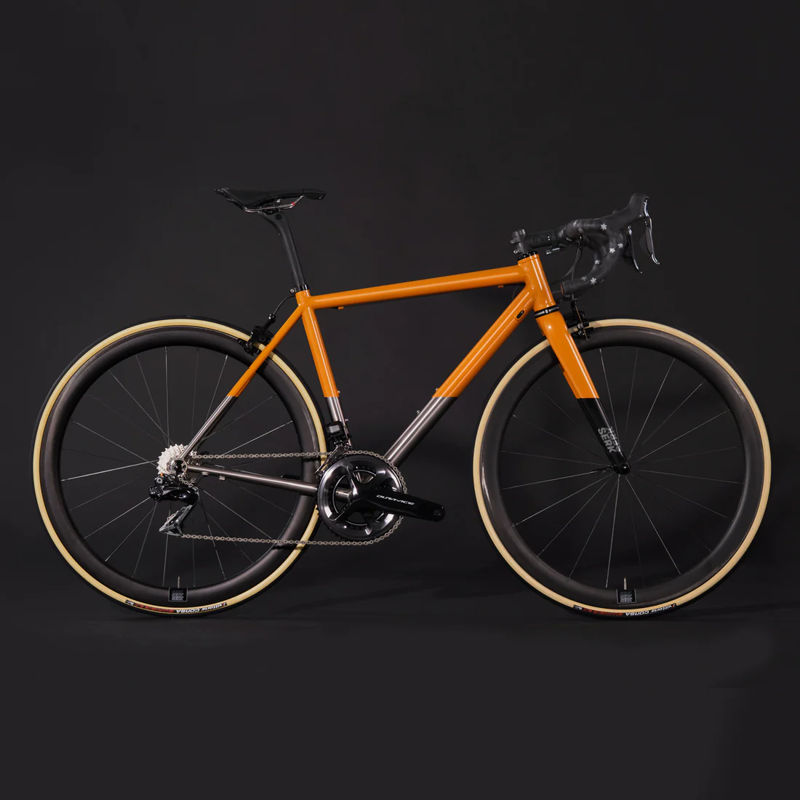

2022 Serk A10 geometry
Full frame geometry for the 2022 Serk A10, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 509 | 364 | 74.5 | 70.5 | 100 | 505 | 408 | 967 | 43 | 73.4 |
| S | 531 | 372 | 74 | 71.5 | 120 | 525 | 408 | 974 | 43 | 67 |
| M | 552 | 381 | 73.5 | 72 | 140 | 545 | 408 | 985 | 43 | 63.9 |
| L | 573 | 390 | 73 | 72.5 | 160 | 565 | 408 | 995 | 43 | 60.8 |
| XL | 594 | 398 | 72.5 | 73 | 180 | 585 | 408 | 1005 | 43 | 57.8 |
All measurements in millimetres unless marked (°) for angles.
