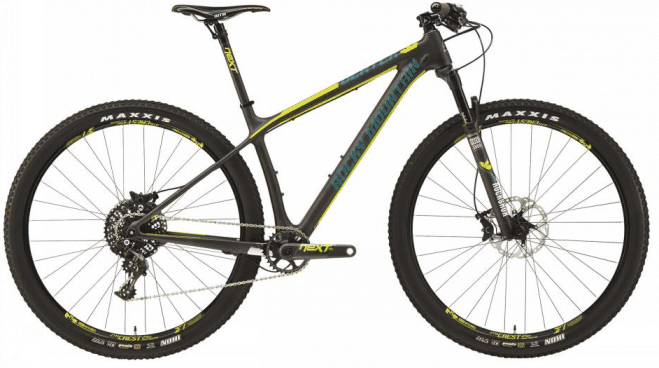

2015 Rocky Mountain Vertex RSL geometry
Full frame geometry for the 2015 Rocky Mountain Vertex RSL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 607 | 384 | 73 | 70.3 | 95 | 570 | 394 | 738 | 56 | 638 | 433 | 1065 |
| M | 612 | 405 | 73 | 70.3 | 100 | 592 | 432 | 752 | 56 | 660 | 433 | 1087 |
| L | 626 | 424 | 73 | 70.3 | 115 | 615 | 470 | 776 | 56 | 683 | 433 | 1110 |
| XL | 640 | 442 | 73 | 70.3 | 130 | 638 | 508 | 808 | 56 | 707 | 433 | 1134 |
All measurements in millimetres unless marked (°) for angles.
