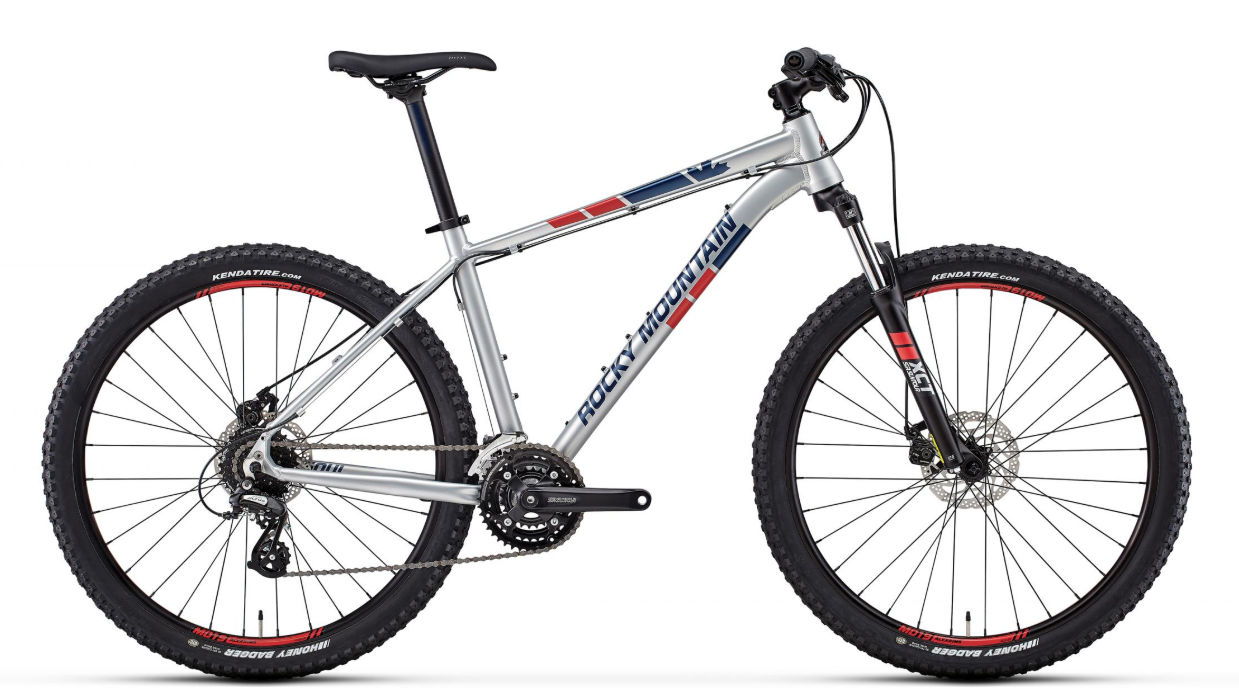

2018 Rocky Mountain Soul 27.5 geometry
Full frame geometry for the 2018 Rocky Mountain Soul 27.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 577 | 360 | 73 | 67 | 100 | 535 | 343 | 770 | 48 | 425 | 1063 |
| S | 601 | 402 | 73 | 67 | 110 | 585 | 430 | 808 | 48 | 425 | 1116 |
| XS | 601 | 376 | 73 | 67 | 110 | 560 | 381 | 706 | 48 | 425 | 1091 |
| M | 610 | 423 | 73 | 67 | 120 | 610 | 457 | 817 | 48 | 425 | 1142 |
| L | 620 | 441 | 73 | 67 | 130 | 630 | 483 | 830 | 48 | 425 | 1163 |
| XL | 630 | 462 | 73 | 67 | 140 | 655 | 521 | 847 | 48 | 425 | 1190 |
All measurements in millimetres unless marked (°) for angles.
