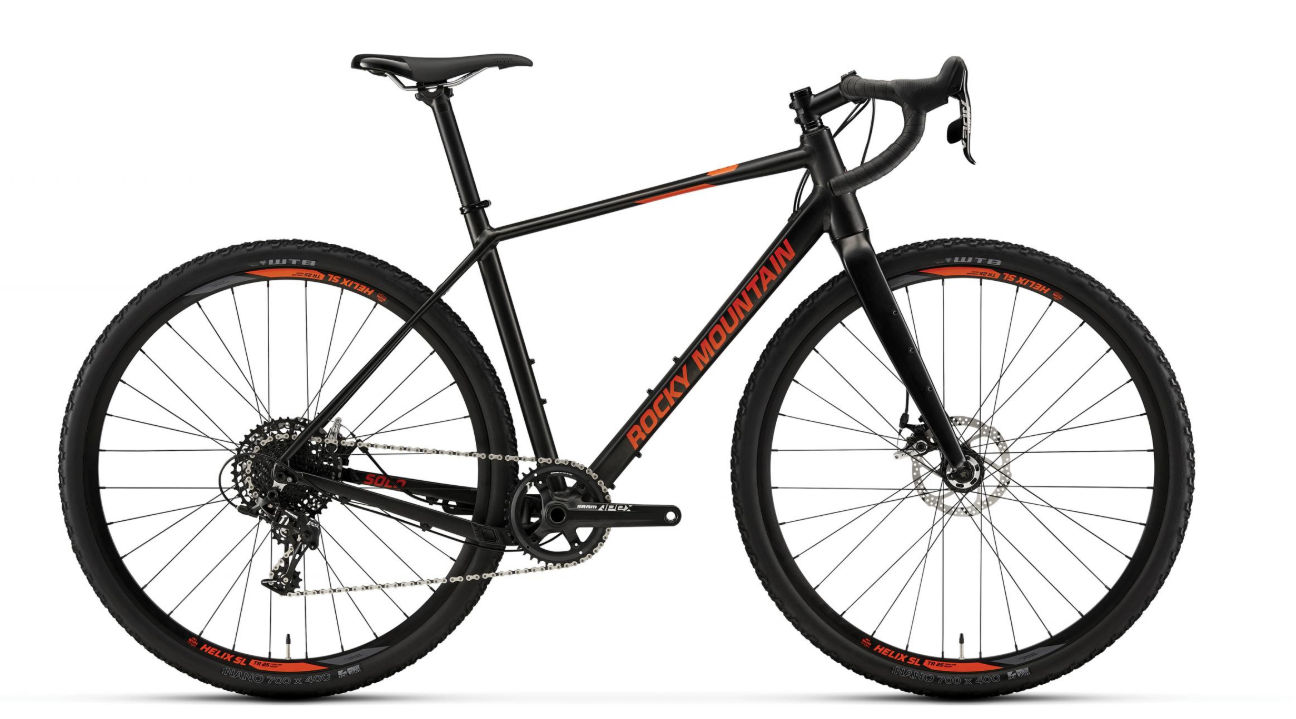

2019 Rocky Mountain Solo geometry
Full frame geometry for the 2019 Rocky Mountain Solo, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 527 | 384 | 75 | 69.5 | 110 | 520 | 414 | 742 | 70 | 607 | 425 | 1022 |
| S | 553 | 392 | 74.5 | 70 | 135 | 540 | 452 | 771 | 70 | 620 | 425 | 1035 |
| M | 580 | 399 | 74 | 71 | 160 | 560 | 490 | 801 | 70 | 626 | 425 | 1041 |
| L | 613 | 404 | 73.5 | 71 | 195 | 580 | 528 | 836 | 70 | 642 | 425 | 1057 |
| XL | 641 | 414 | 73 | 72 | 220 | 605 | 566 | 876 | 70 | 651 | 425 | 1066 |
All measurements in millimetres unless marked (°) for angles.
