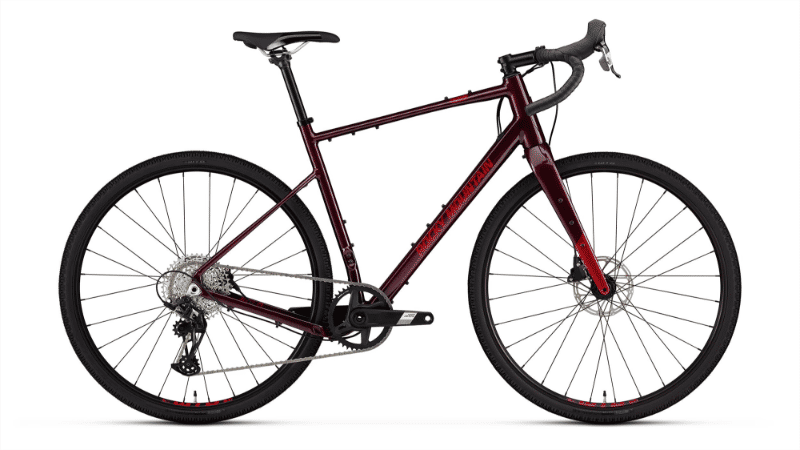

2024 Rocky Mountain Solo Alloy geometry
Full frame geometry for the 2024 Rocky Mountain Solo Alloy, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 538.2 | 375.8 | 75 | 70 | 100 | 520 | 414 | 754 | 78 | 425 | 1021 |
| SM | 567.4 | 382.7 | 74.5 | 70.5 | 130 | 540 | 452 | 787 | 77 | 425 | 1034 |
| MD | 586.2 | 391.9 | 74 | 71 | 150 | 560 | 490 | 814 | 75 | 425 | 1045 |
| LG | 621.4 | 395.9 | 73.5 | 71.5 | 185 | 580 | 528 | 850 | 75 | 425 | 1056 |
| XL | 645.1 | 407.7 | 73 | 71.5 | 210 | 605 | 566 | 877 | 75 | 425 | 1076 |
All measurements in millimetres unless marked (°) for angles.
