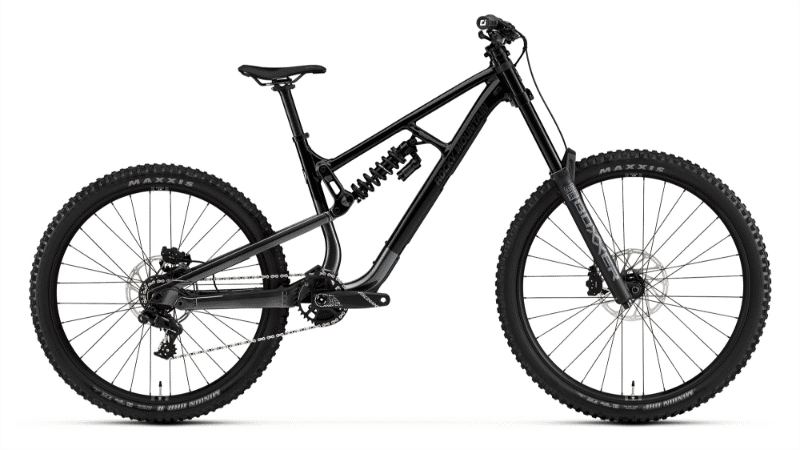

2025 Rocky Mountain Slayer Park geometry
Full frame geometry for the 2025 Rocky Mountain Slayer Park, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MD | 626.4 | 452.6 | 77.3 | 62.8 | 100 | 594 | 410 | 826.2 | 6.5 | 437.1 | 1252.6 | 48 |
| LG | 634.9 | 487.3 | 77.3 | 62.8 | 110 | 620.8 | 440 | 828.3 | 20.7 | 438.8 | 1283.9 | 48 |
| XL | 648.3 | 508.3 | 77.3 | 62.8 | 125 | 653.8 | 470 | 828.3 | 20.7 | 438.8 | 1320.7 | 48 |
| SM | — | 427.6 | 77.3 | 62.8 | 100 | 569 | 380 | 826.2 | 6.5 | 437.1 | 1227.6 | 48 |
All measurements in millimetres unless marked (°) for angles.
