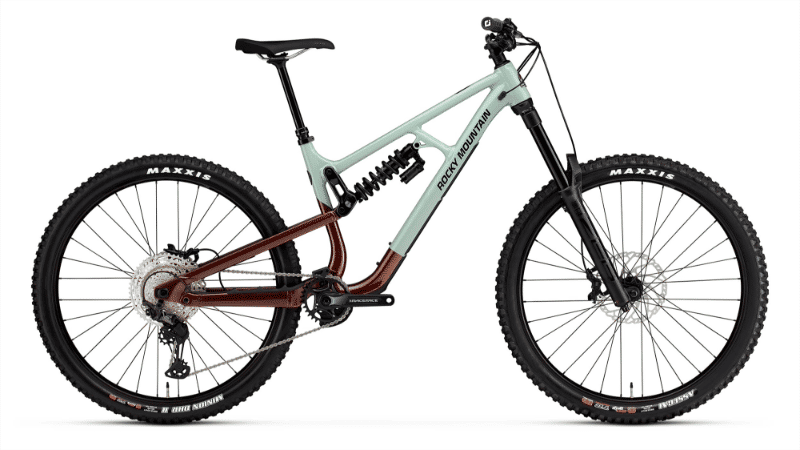

2024 Rocky Mountain Slayer Alloy geometry
Full frame geometry for the 2024 Rocky Mountain Slayer Alloy, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MD | 623 | 450 | 77 | 62.5 | 100 | 593 | 410 | 820 | 16 | 440 | 1249 | 44 |
| SM | 623 | 424 | 77 | 62.5 | 100 | 568 | 380 | 820 | 16 | 440 | 1224 | 44 |
| LG | 638 | 474 | 77 | 62.5 | 110 | 622 | 440 | 820 | 29 | 440 | 1281 | 44 |
| XL | 651 | 504 | 77 | 62.5 | 125 | 655 | 470 | 822 | 29 | 440 | 1317 | 44 |
All measurements in millimetres unless marked (°) for angles.
