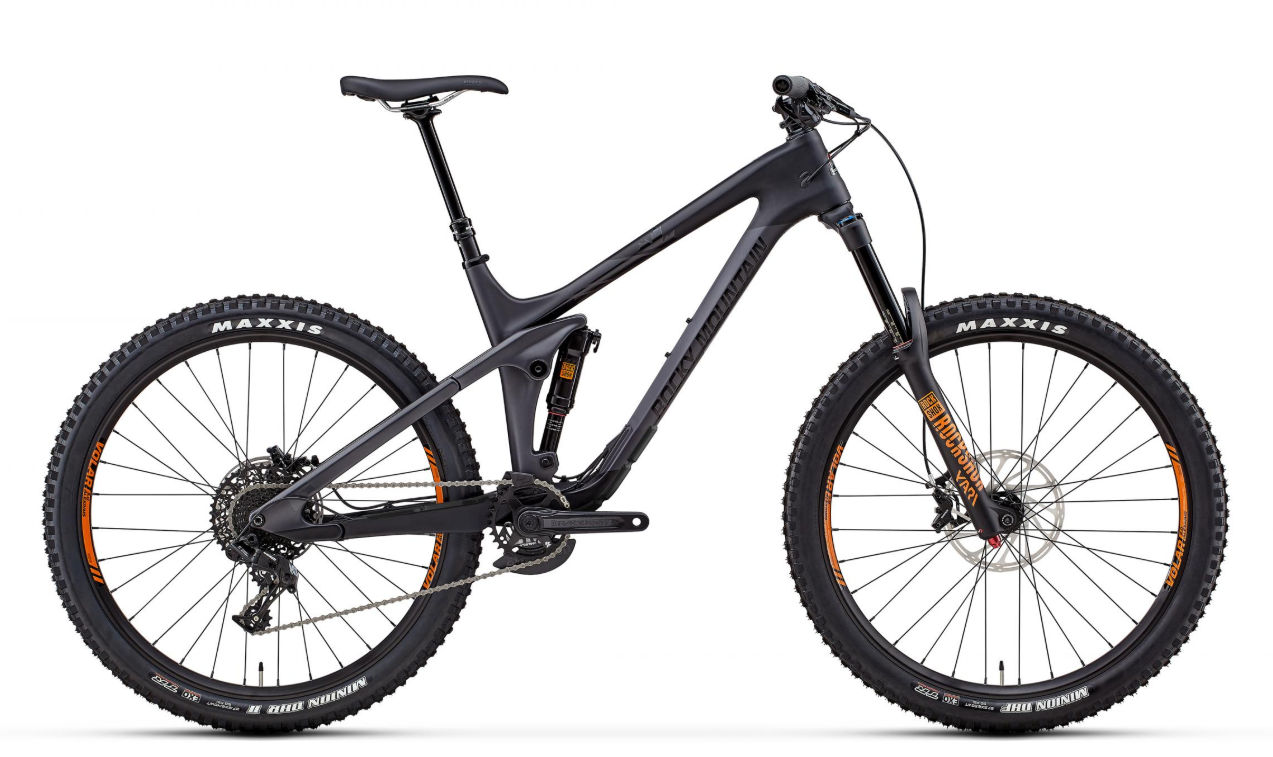

2018 Rocky Mountain Slayer 27.5 geometry
Full frame geometry for the 2018 Rocky Mountain Slayer 27.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 602 | 404 | 74 | 65 | 110 | 576 | 394 | 820 | 12 | 429 | 1157 |
| M | 616 | 425 | 74 | 65 | 125 | 601 | 432 | 820 | 12 | 429 | 1184 |
| L | 629 | 446 | 74 | 65 | 140 | 627 | 470 | 820 | 12 | 429 | 1211 |
| XL | 643 | 472 | 74 | 65 | 155 | 657 | 509 | 820 | 12 | 429 | 1244 |
All measurements in millimetres unless marked (°) for angles.
