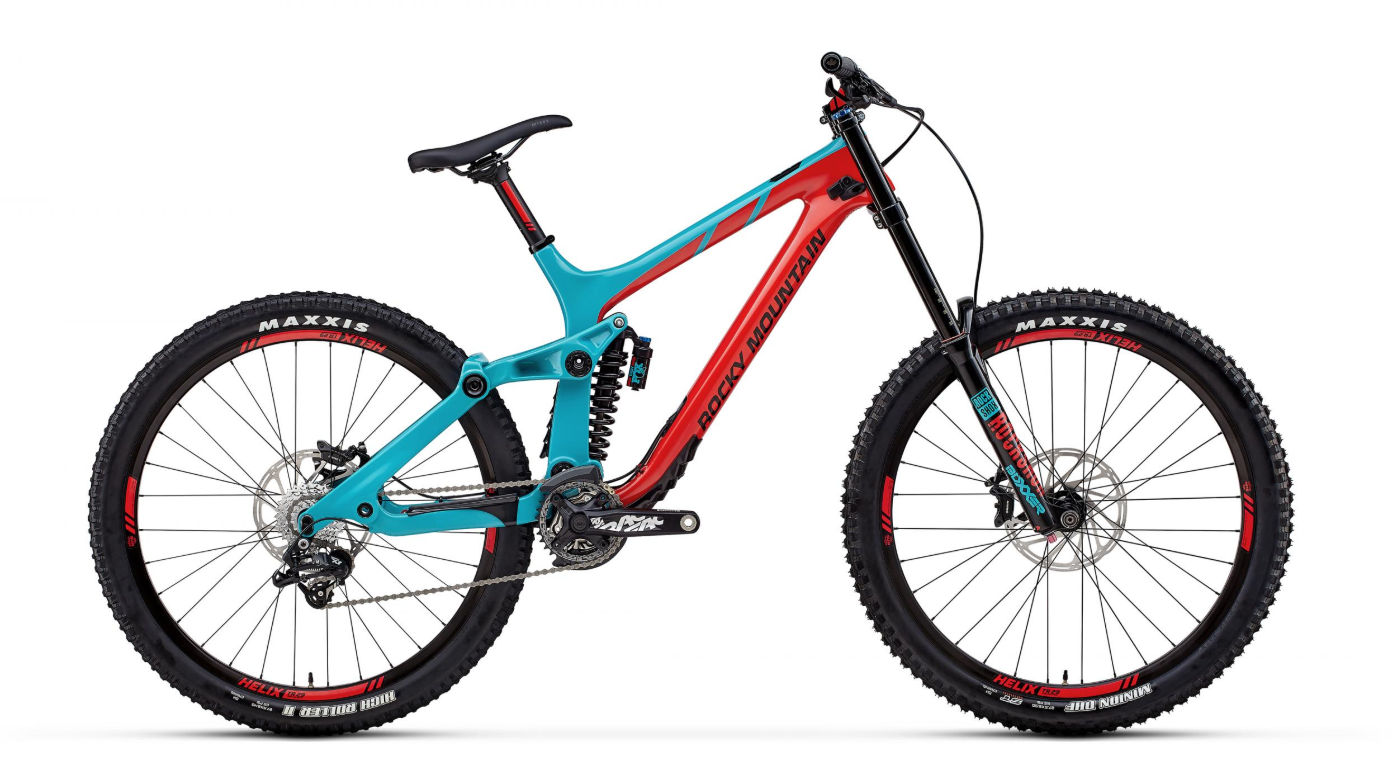

2018 Rocky Mountain Maiden 27.5 geometry
Full frame geometry for the 2018 Rocky Mountain Maiden 27.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| L | 611 | 428 | 74 | 63 | 115 | 603 | 457 | 820 | 9 | 425 | 1220 |
| M | 611 | 414 | 74 | 63 | 115 | 589 | 432 | 820 | 9 | 425 | 1206 |
| S | 611 | 396 | 74 | 63 | 115 | 571 | 406 | 820 | 9 | 425 | 1188 |
| XL | 611 | 446 | 74 | 63 | 115 | 621 | 457 | 820 | 9 | 425 | 1238 |
All measurements in millimetres unless marked (°) for angles.
