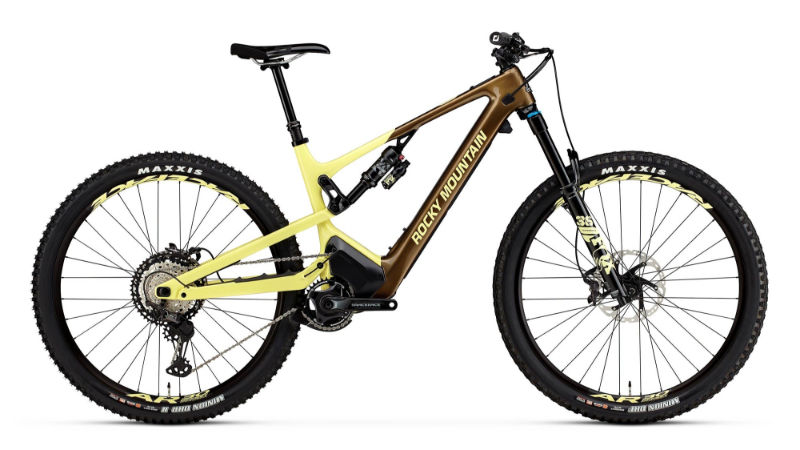

2024 Rocky Mountain Instinct Powerplay Carbon geometry
Full frame geometry for the 2024 Rocky Mountain Instinct Powerplay Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MD | 624 | 457 | 76.2 | 64.2 | 100 | 610 | 420 | 818 | 42 | 439 | 1226 |
| SM | 624 | 432 | 76.2 | 64.2 | 100 | 585 | 380 | 819 | 42 | 439 | 1201 |
| LG | 632 | 482 | 76.2 | 64.2 | 110 | 638 | 445 | 817 | 42 | 439 | 1256 |
| XL | 646 | 512 | 76.2 | 64.2 | 125 | 671 | 480 | 818 | 42 | 439 | 1292 |
All measurements in millimetres unless marked (°) for angles.
