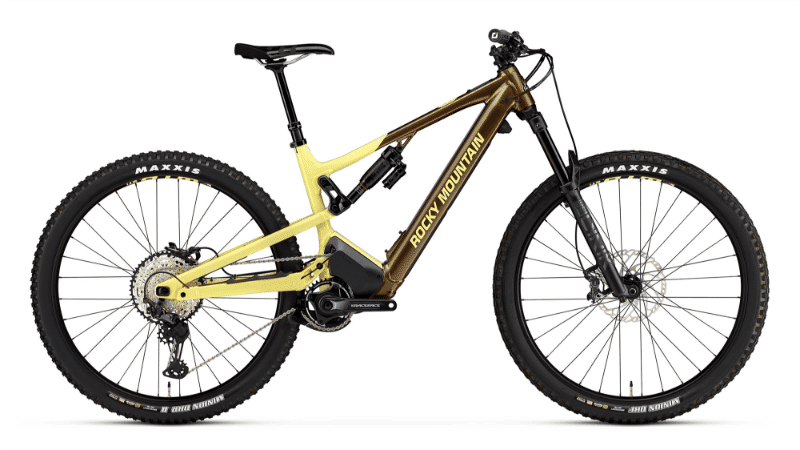

2024 Rocky Mountain Instinct Powerplay Alloy geometry
Full frame geometry for the 2024 Rocky Mountain Instinct Powerplay Alloy, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MD | 622 | 460 | 76.4 | 64.4 | 100 | 610 | 420 | 820 | 39 | 438 | 1226 | 42 |
| SM | 622 | 435 | 76.4 | 64.4 | 100 | 585 | 380 | 820 | 39 | 438 | 1201 | 42 |
| LG | 630 | 485 | 76.4 | 64.4 | 110 | 637 | 445 | 820 | 39 | 438 | 1255 | 42 |
| XL | 644 | 515 | 76.4 | 64.4 | 125 | 670 | 480 | 820 | 39 | 438 | 1292 | 42 |
All measurements in millimetres unless marked (°) for angles.
