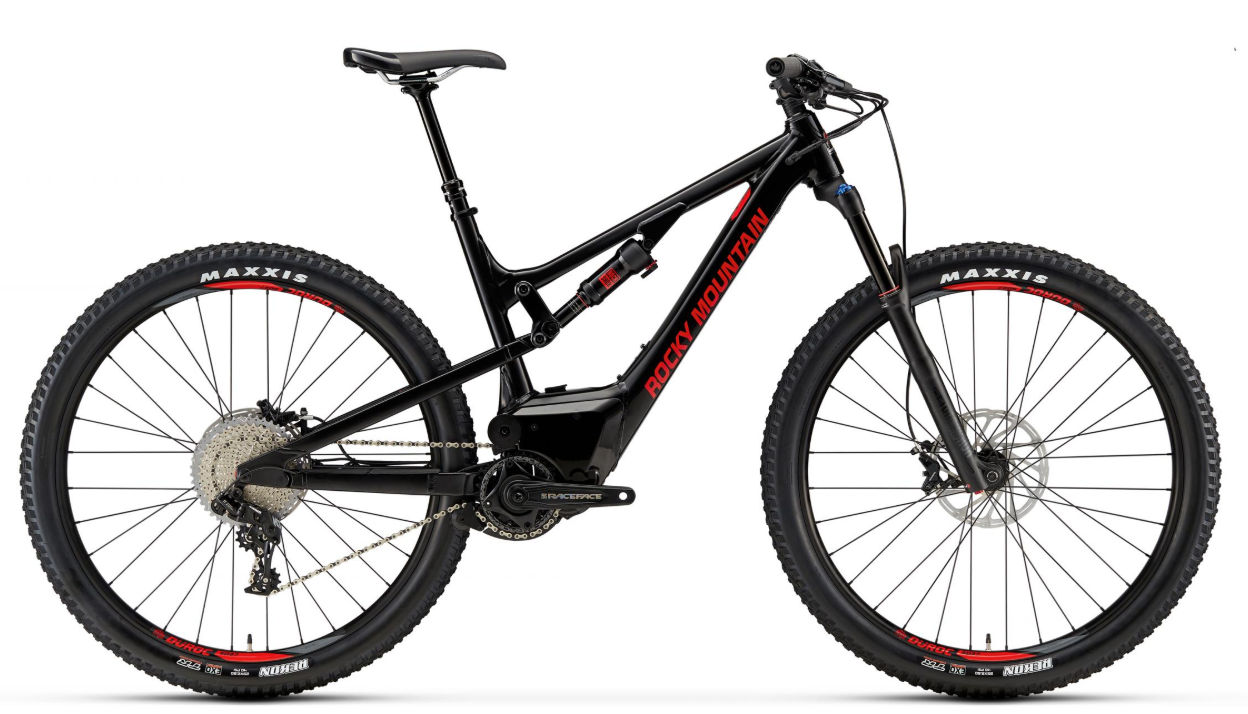

2019 Rocky Mountain Instinct Powerplay 29 geometry
Full frame geometry for the 2019 Rocky Mountain Instinct Powerplay 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 608 | 437 | 75.3 | 66.5 | 100 | 597 | 432 | 812 | 30 | 746 | 442 | 1186 |
| S | 608 | 412 | 75.2 | 66.5 | 100 | 573 | 394 | 818 | 30 | 721 | 442 | 1161 |
| L | 617 | 460 | 75.1 | 66.5 | 110 | 624 | 470 | 811 | 30 | 772 | 442 | 1212 |
| XL | 626 | 487 | 75.1 | 66.5 | 120 | 654 | 508 | 809 | 30 | 804 | 442 | 1244 |
All measurements in millimetres unless marked (°) for angles.
