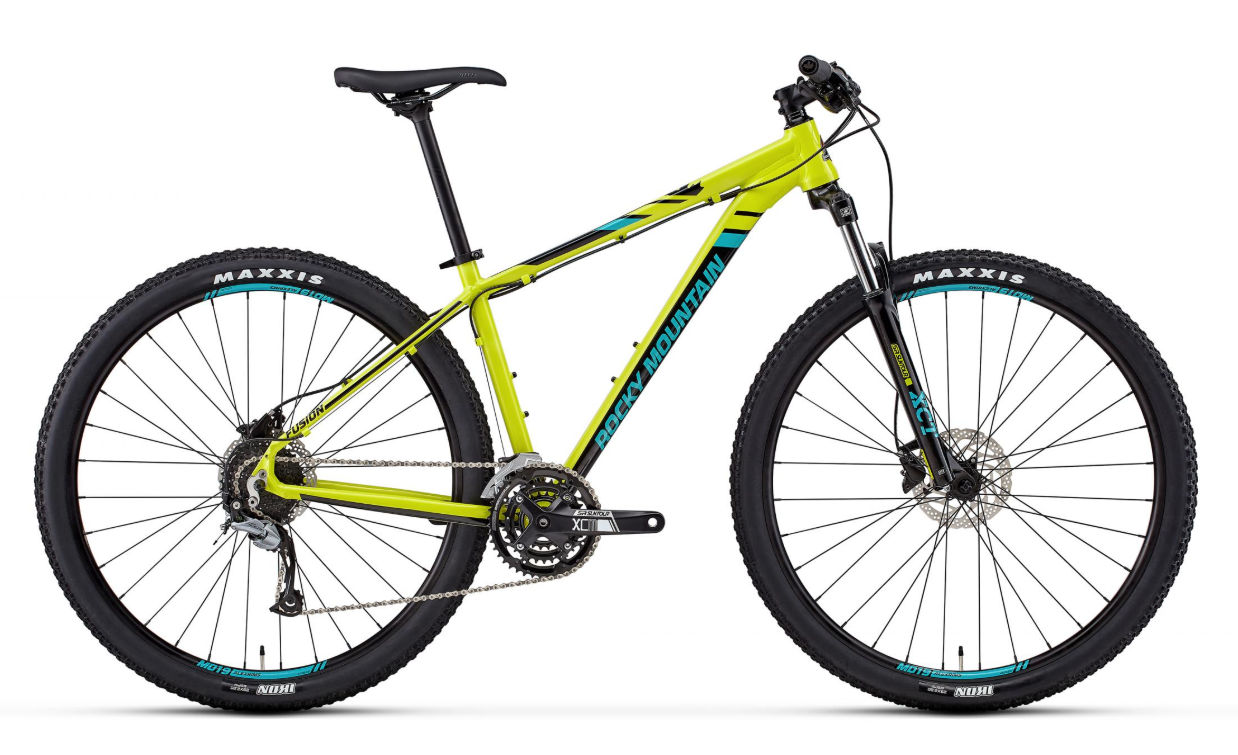

2018 Rocky Mountain Fusion 29 geometry
Full frame geometry for the 2018 Rocky Mountain Fusion 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 597 | 376 | 74 | 69.5 | 100 | 550 | 355 | 719 | 56 | 447 | 1089 |
| M | 614 | 404 | 73 | 70.2 | 100 | 592 | 431 | 752 | 56 | 447 | 1093 |
| S | 615 | 380 | 73 | 70.2 | 100 | 570 | 393 | 738 | 56 | 447 | 1071 |
| L | 628 | 423 | 73 | 70.2 | 115 | 615 | 469 | 776 | 56 | 447 | 1117 |
| XL | 642 | 440 | 73 | 70.2 | 130 | 638 | 508 | 808 | 56 | 447 | 1140 |
All measurements in millimetres unless marked (°) for angles.
