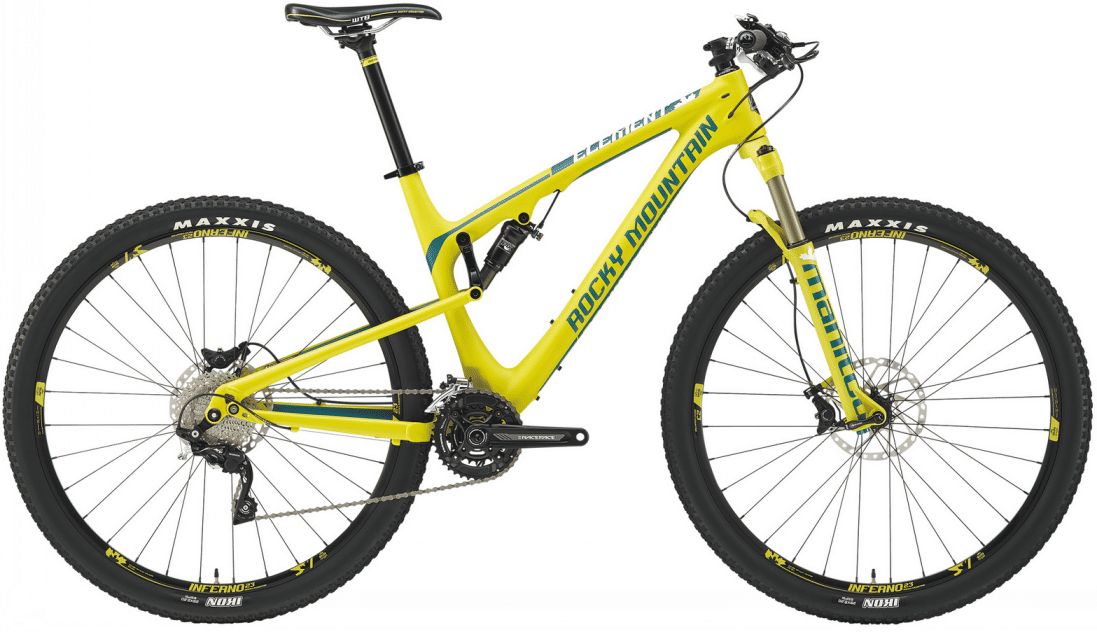

2015 Rocky Mountain Element RSL geometry
Full frame geometry for the 2015 Rocky Mountain Element RSL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 592 | 388 | 74 | 70.6 | 100 | 558 | 394 | 771 | 40 | 624 | 445 | 1066 |
| M | 603 | 409 | 74 | 70.6 | 110 | 582 | 432 | 771 | 40 | 655 | 445 | 1097 |
| L | 612 | 429 | 74 | 70.6 | 120 | 605 | 470 | 771 | 40 | 678 | 445 | 1120 |
| XL | 622 | 452 | 74 | 70.6 | 130 | 630 | 508 | 771 | 40 | 704 | 445 | 1146 |
| XXL | 636 | 473 | 74 | 70.6 | 145 | 655 | 546 | 771 | 40 | 730 | 445 | 1172 |
All measurements in millimetres unless marked (°) for angles.
