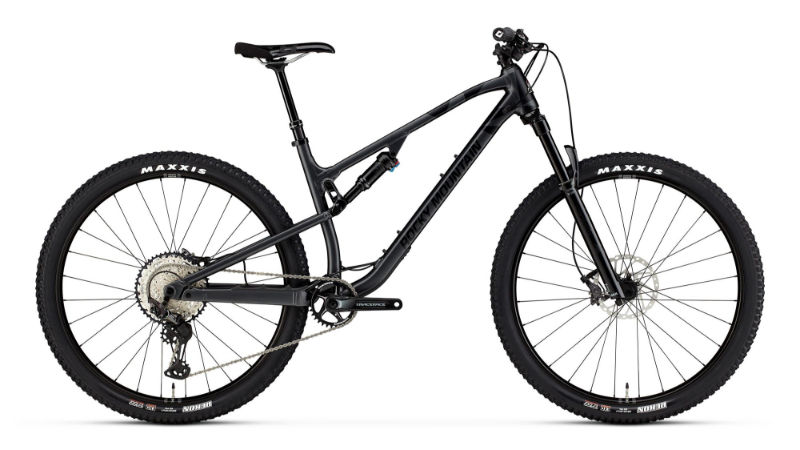

2024 Rocky Mountain Element Alloy geometry
Full frame geometry for the 2024 Rocky Mountain Element Alloy, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 561 | 397 | 75.7 | 64.7 | 90 | 542 | 355 | 769 | 28 | 426 | 1127 | 44 |
| SM | 606 | 425 | 76 | 65 | 105 | 577 | 380 | 810 | 47 | 436 | 1173 | 44 |
| MD | 615 | 450 | 76 | 65 | 115 | 605 | 420 | 808 | 47 | 436 | 1202 | 44 |
| LG | 624 | 475 | 76 | 65 | 125 | 632 | 445 | 806 | 47 | 436 | 1231 | 44 |
| XL | 633 | 505 | 76 | 65 | 135 | 664 | 480 | 804 | 47 | 436 | 1265 | 44 |
All measurements in millimetres unless marked (°) for angles.
