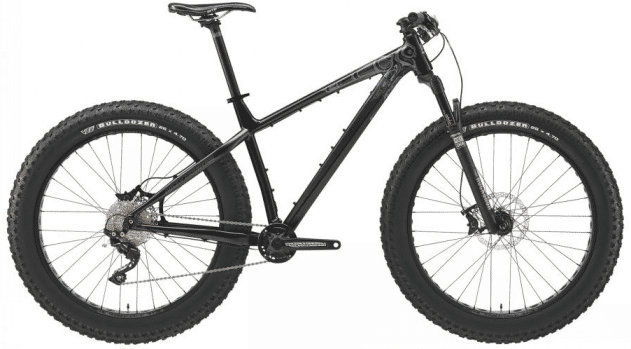

2015 Rocky Mountain Blizzard MK I geometry
Full frame geometry for the 2015 Rocky Mountain Blizzard MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 613 | 414 | 73.5 | 68.5 | 115 | 590 | 457 | 720 | 52 | 688 | 455 | 1138 |
| S | 613 | 394 | 73.5 | 68.5 | 115 | 570 | 430 | 700 | 52 | 668 | 455 | 1118 |
| L | 618 | 433 | 73.5 | 68.5 | 120 | 610 | 483 | 740 | 52 | 710 | 455 | 1160 |
| XL | 637 | 452 | 73.5 | 68.5 | 140 | 635 | 521 | 770 | 52 | 735 | 455 | 1185 |
All measurements in millimetres unless marked (°) for angles.
