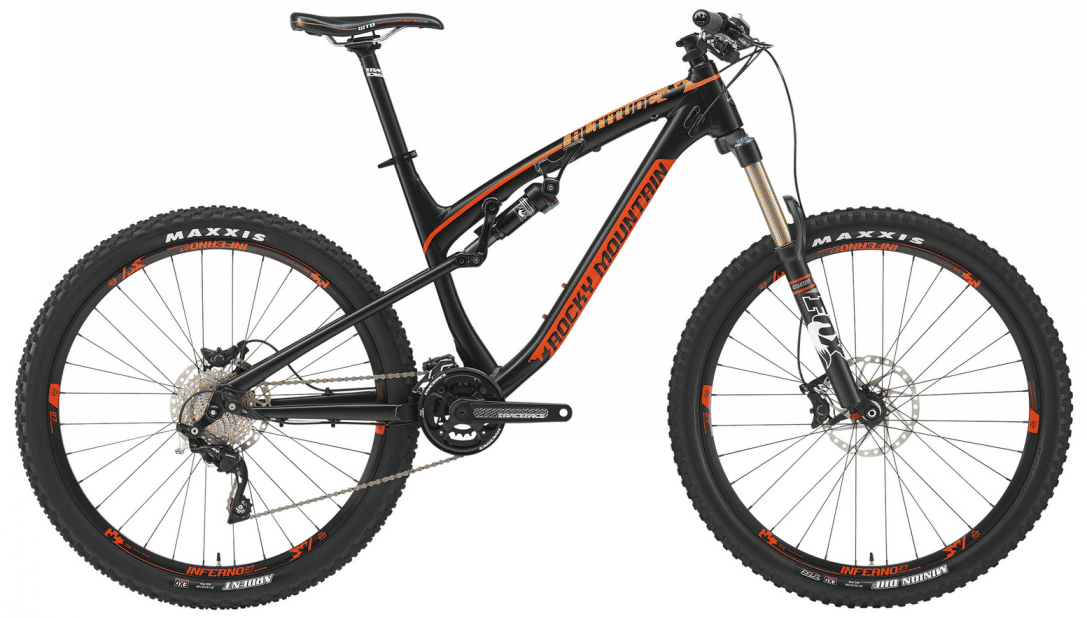

2015 Rocky Mountain Altitude geometry
Full frame geometry for the 2015 Rocky Mountain Altitude, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 582 | 379 | 74.5 | 67.5 | 100 | 540 | 381 | 734 | 20 | 668 | 428 | 1095 |
| S | 591 | 401 | 74.5 | 67.5 | 110 | 565 | 419 | 734 | 20 | 693 | 428 | 1120 |
| M | 600 | 419 | 74.5 | 67.5 | 120 | 585 | 457 | 734 | 20 | 715 | 428 | 1142 |
| L | 610 | 436 | 74.5 | 67.5 | 130 | 605 | 483 | 734 | 20 | 736 | 428 | 1163 |
| XL | 623 | 457 | 74.5 | 67.5 | 145 | 630 | 521 | 734 | 20 | 762 | 428 | 1189 |
All measurements in millimetres unless marked (°) for angles.
