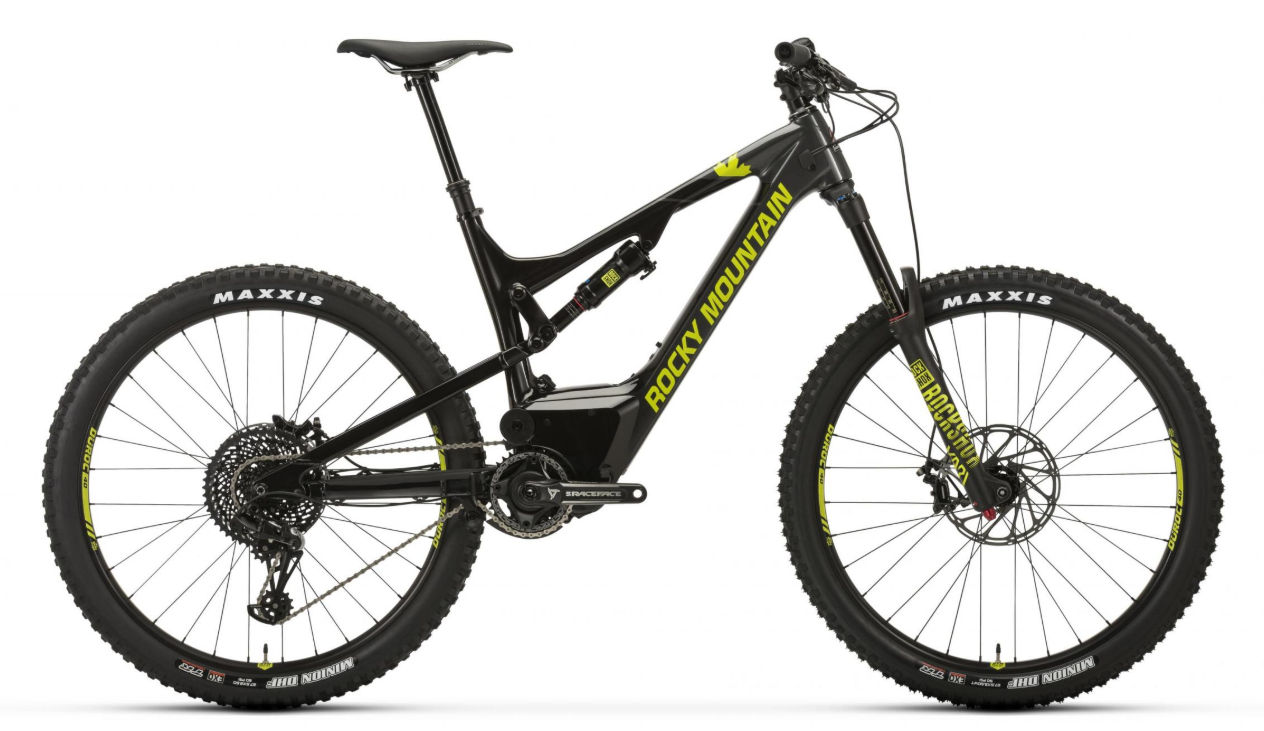

2018 Rocky Mountain Altitude Powerplay geometry
Full frame geometry for the 2018 Rocky Mountain Altitude Powerplay, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 583 | 407 | 74 | 64.5 | 110 | 578 | 419 | 810 | 13 | 426 | 1157 |
| M | 604 | 430 | 74 | 65 | 120 | 603 | 457 | 814 | 13 | 426 | 1180 |
| L | 613 | 452 | 74 | 65 | 130 | 628 | 482 | 814 | 13 | 426 | 1206 |
| XL | 628 | 479 | 74 | 65 | 145 | 658 | 520 | 814 | 13 | 426 | 1239 |
All measurements in millimetres unless marked (°) for angles.
