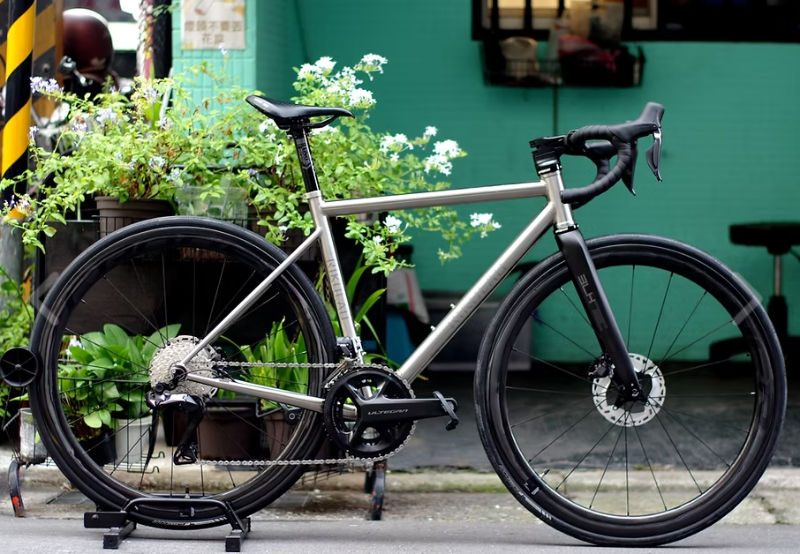

2025 Rikulau Master Ti 6-4 geometry
Full frame geometry for the 2025 Rikulau Master Ti 6-4, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) |
|---|---|---|---|---|---|---|---|---|
| XS | 503.1 | 372 | 74.5 | 71 | 106 | 511 | 450 | 68 |
| S | 522.8 | 381 | 74 | 71.5 | 125 | 530.9 | 490 | 68 |
| M | 537.1 | 390 | 73.5 | 72 | 140 | 549 | 520 | 68 |
| L | 556 | 399 | 73.5 | 71.5 | 160 | 563.7 | 550 | 68 |
| XL | 572.1 | 406 | 73 | 72 | 175 | 580.9 | 580 | 68 |
| XXL | 591.1 | 416 | 73 | 72 | 195 | 596.7 | 600 | 68 |
All measurements in millimetres unless marked (°) for angles.
